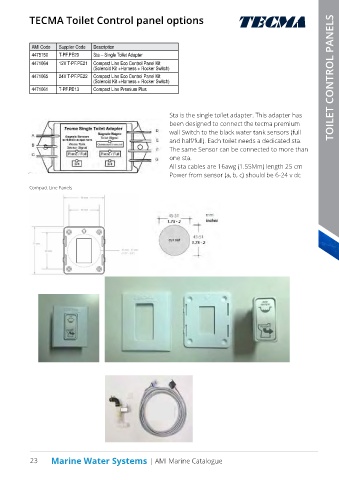

TECMA Toilet Control panel options

AMI Code Supplier Code Description
4475150 T-PF.PE20 Sta – Single Toilet Adapter
4471064 12V T-PF.PE21 Compact Line Eco Control Panel Kit
(Solenoid Kit +Harness + Rocker Switch)
4471065 24V T-PF.PE22 Product Information Sheet TOILET CONTROL PANELS
Compact Line Eco Control Panel Kit
(Solenoid Kit +Harness + Rocker Switch)
4471061 T-PF.PE13 Compact Line Premium Plus
T-PF.PE20 - SINGLE TOILET ADAPTER

Sta is the single toilet adapter. This adapter has
Product Information Sheet
been designed to connect the tecma premium
COMPACT LINE PANELS wall Switch to the black water tank sensors (full
and half/full). Each toilet needs a dedicated sta.
The same Sensor can be connected to more than
one sta.
T-PF.PE21 - COMPACT LINE ECO CONTROL PANEL KIT (SOLENOID kit +HARNESS + ROCKER SWITCH) 12V
All sta cables are 16awg (1.55Mm) length 25 cm

Power from sensor (a, b, c) should be 6-24 v dc
T-PF.PE22 - COMPACT LINE ECO CONTROL PANEL KIT (SOLENOID kit +HARNESS + ROCKER SWITCH) 24V
STA IS THE SINGLE TOILET ADAPTER. THIS ADAPTER HAS BEEN DESIGNED TO CONNECT THE TECMA PREMIUM WALL

Compact Line Panels
SWITCH TO THE BLACK WATER TANK SENSORS (FULL AND HALF/FULL). EACH TOILET NEEDS A DEDICATED STA. THE SAME

SENSOR CAN BE CONNECTED TO MORE THAN ONE STA.
ALL STA CABLES ARE 16AWG (1.55MM) LENGTH 25 CM
POWER FROM SENSOR (A, B, C) SHOULD BE 6-24 V DC

A+B FULL TANK / POWER FROM SENSOR
A+C ¾ TANK / POWER FROM SENSOR

A – BLACK THIS IS IN COMMON BETWEEN FULL AND MID TANK SENSOR + -
B – RED THIS IS THE POWER FROM FULL TANK SENSOR - +
C – WHITE THIS IS THE POWER FROM ¾ TANK SENSOR - +

D + E FULL TANK POWER TO CONTROLLER

D – RED
E – BLACK

F + G ¾ TANK POWER TO CONTROLLER

F – WHITHE
G – GREEN
Multiple STA connection

INSTALLATION REMARKS:

- IF ¾ POWER IS NOT REQUIRED, DO NOT CONNECT C WIRE

- PROTECT ALL CONNECTIONS FROM CORROSION

- A,B,C IS THE INCOMING POWER FROM TANK SENSORS

- D,E,F,G IS THE OUTGOING POWER TO THE CONTROLLER
- IF NO TANK SENSORS ARE INSTALLED CONNECT ONLY D+E TO THE CONTROLLER
- IF STA IS NEAR THE TANK IT IS POSSIBLE TO EXTEND D,E,F,G WIRES UP TO 40MT*
- IF STA IS NEAR THE WC IT IS POSSIBLE TO EXTEND A,B,C, WIRES FOR UP TO 100MT *
- WHEN PROPERLY CONNECTED THE LED LIGHT “CONNECTED” WILL BE FLASHING

*ALWAYS DEPENDS ON THE CONFIGURATION OF THE ELECTRICAL SYSTEM AND ON THE WIRE YOU USE.
08_SP_V03_CONTROL PANEL 23 Marine Water Systems | AMI Marine Catalogue

08_SP_V03_CONTROL PANEL provided with the product . This information is valid as a guide only, Thetford reserves the right to change specification without
ECO SOLENOID KIT INLUDES SOLENOID, CABLES AND CONNNECTORS
ECO = LOW WATER CONSUMPTION AND LOW ENERGY CONSUMPTION (-> MANUAL USE)

For more detail on wiring connections (power, macerator pump, solenoid, controllers and sensor) please refer to the manual
COMPACT ROCKER SWITCH FUNCTIONS:
prior warning.

- UP -> POWER TO SOLENOID (OR SEA WATER INLET PUMP (ONLY VERSION WITH SEA WATER ON REQUEST)
- DOWN -> POWER TO MACERATOR + SOLENOID (OR SEA WATER INLET PUMP (ONLY VERSION WITH SEA WATER ON REQUEST

For more detail on wiring connections (power, macerator pump, solenoid, controllers and sensor) please refer to the manual
provided with the product . This information is valid as a guide only, Thetford reserves the right to change specification without
prior warning.
