DYNAMIC TRIM CONTROL SYSTEMS
MARINE TOILETS Ordering information - select from these options: (12) 12V

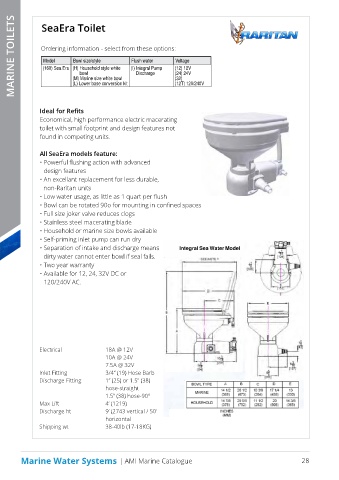

SeaEra Toilet

Bowl size/style
Model
Voltage
Flush water
(160) Sea Era (H) Household style white
(I) Integral Pump

Discharge
bowl
(24) 24V
(M) Marine size white bowl
(32)
(L) Lower base conversion kit
(12T) 120/240V
Ideal for Refits
Economical, high performance electric macerating
toilet with small footprint and design features not
found in competing units.

All SeaEra models feature:
• Powerful flushing action with advanced
design features
• An excellant replacement for less durable,
non-Raritan units
• Low water usage, as little as 1 quart per flush
• Bowl can be rotated 90o for mounting in confined spaces
• Full size joker valve reduces clogs
• Stainless steel macerating blade
• Household or marine size bowls available
• Self-priming inlet pump can run dry SeaEra
• Separation of intake and discharge means Integral Sea Water Model Integral Intake Pump Installation Below Waterline
dirty water cannot enter bowl if seal fails.
• Two year warranty
• Available for 12, 24, 32V DC or Vented Loop
120/240V AC. SeaEra

Water Line Water Line

Electroscan In-Line
Strainer
Specifications
Electrical 18A @ 12V
10A @ 24V
7.5A @ 32V
Electrical 18A @ 12V Inlet Fitting 3/4” (19) Hose Barb
10A @ 24V Discharge Fitting 1" (25) or 1.5" (38) hose-straight
7.5A @ 32V Max Lift 1.5" (38) hose-90°
4’ (1219)
Inlet Fitting 3/4” (19) Hose Barb Discharge ht 9’ (2743 vertical / 50’ horizontal
Discharge Fitting 1” (25) or 1.5” (38) Shipping wt 38-40lb (17-18KG)
hose-straight
1.5” (38) hose-90° Additional parts that are needed for installation: Four
Max Lift 4’ (1219) stainless steel mounting bolts or lag screws (minimum 1/4"
Discharge ht 9’ (2743 vertical / 50’ [6mm]) and washers, 1" (25mm) or 1½" (38mm) I.D.
horizontal discharge hose, ¾" (19mm) I.D. intake hose, hose clamps,
wire, fuses or circuit breakers.
Shipping wt 38-40lb (17-18KG)
Product Models

160 SeaEra H Household-style, I Integral pump 0 Straight
white bowl 12 Specify
Discharge 24 Voltage
M Marine-size,
The SeaEra is an economical electric macerating toilet
Marine Water Systems | AMI Marine Catalogue 28 white bowl 32
that fits into confined spaces. This toilet was designed
L Lower Base/
to meet the needs of boaters. 12T 120/240
Conversion Kit
Engineering has developed a new built-in discharge
To order the correct unit for your installation make one
fitting that can accept either 1½" (38mm) or 1" (25mm)
selection from each column above.
discharge lines without the need for an adapter. The
Model sample: 160HI012 - SeaEra, Household-style, Integral
SeaEra’s discharge pump can handle a vented loop
pump, straight discharge,12V
with a maximum height of five feet (1.52m) and utilizes
a full-sized joker valve to help avoid clogging. Conversion Kit sample: 160LI012 - SeaEra, Conversion Kit,
Integral pump, straight discharge, 12V
The inlet pump can lift water from four feet
(1.22m) below the toilet and can be run dry without Additional models are available. Call Raritan Technical
damaging the pump. To simplify a new installation or Support for assistance in ordering the model that best suits
a retrofit, water can be routed from either side of the your application.
inlet pump using interchangeable ¾" (19mm) hose barb
fittings (two straight and one 90°)

L1039 1009kgs
