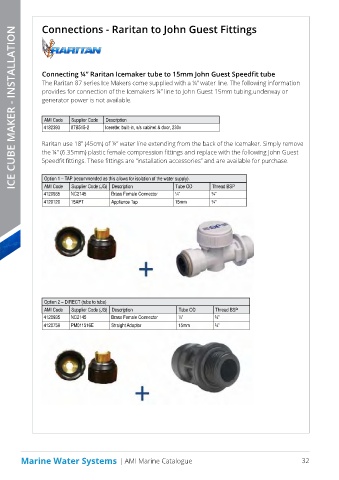

Connections - Raritan to John Guest Fittings
ICE CUBE MAKER - INSTALLATION
Connecting ¼” Raritan Icemaker tube to 15mm John Guest Speedfit tube
The Raritan 87 series Ice Makers come supplied with a ¼” water line. The following information
provides for connection of the Icemakers ¼” line to John Guest 15mm tubing.underway or
generator power is not available.
AMI Code Supplier Code Description
4182393 87B515-2 Icerette: built-in, s/s cabinet & door, 230v
Raritan use 18” (45cm) of ¼” water line extending from the back of the Icemaker. Simply remove
the ¼” (6.35mm) plastic female compression fittings and replace with the following John Guest
Speedfit fittings. These fittings are “installation accessories” and are available for purchase.
Option 1 – TAP (recommended as this allows for isolation of the water supply).
AMI Code Supplier Code (JG) Description Tube OD Thread BSP
4120935 NC2145 Brass Female Connector ¼” ¾”
4120120 15APT Appliance Tap 15mm ¾”
Option 2 – DIRECT (tube to tube)
AMI Code Supplier Code (JG) Description Tube OD Thread BSP
4120935 NC2145 Brass Female Connector ¼” ¾”
4120759 PM011516E Straight Adaptor 15mm ¾”
