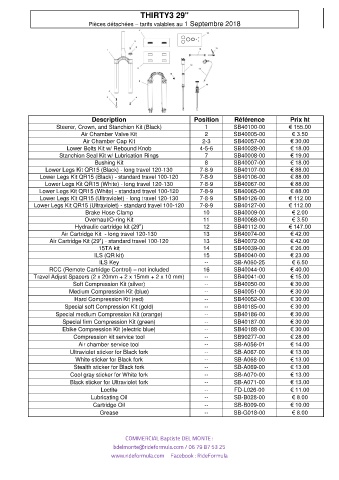

Page 13 - CATALOGUE PRO 2019 NON DEFINITIF PDF_Neat

THIRTY3 29"

Pièces détachées – tarifs valables au 1 Septembre 2018

Description Position Référence Prix ht
Steerer, Crown, and Stanchion Kit (Black) 1 SB40100-00 € 155.00
Air Chamber Valve Kit 2 SB40005-00 € 3.50
Air Chamber Cap Kit 2-3 SB40057-00 € 30.00
Lower Bolts Kit w/ Rebound Knob 4-5-6 SB40028-00 € 18.00
Stanchion Seal Kit w/ Lubrication Rings 7 SB40008-00 € 19.00
Bushing Kit 8 SB40007-00 € 18.00
Lower Legs Kit QR15 (Black) - long travel 120-130 7-8-9 SB40107-00 € 88.00
Lower Legs Kit QR15 (Black) - standard travel 100-120 7-8-9 SB40106-00 € 88.00
Lower Legs Kit QR15 (White) - long travel 120-130 7-8-9 SB40067-00 € 88.00
Lower Legs Kit QR15 (White) - standard travel 100-120 7-8-9 SB40065-00 € 88.00
Lower Legs Kit QR15 (Ultraviolet) - long travel 120-130 7-8-9 SB40126-00 € 112.00
Lower Legs Kit QR15 (Ultraviolet) - standard travel 100-120 7-8-9 SB40127-00 € 112.00
Brake Hose Clamp 10 SB40009-00 € 2.00
Overhaul/O-ring Kit 11 SB40068-00 € 3.50
Hydraulic cartridge kit (29”) 12 SB40112-00 € 147.00
Air Cartridge Kit - long travel 120-130 13 SB40074-00 € 42.00
Air Cartridge Kit (29”) - standard travel 100-120 13 SB40072-00 € 42.00
15TA kit 14 SB40039-00 € 26.00
ILS (QR kit) 15 SB40040-00 € 23.00
ILS Key -- SB-A060-25 € 6.50
RCC (Remote Cartridge Control) – not included 16 SB40044-00 € 40.00
Travel Adjust Spacers (2 x 20mm + 2 x 15mm + 2 x 10 mm) -- SB40041-00 € 15.00
Soft Compression Kit (silver) -- SB40050-00 € 30.00
Medium Compression Kit (blue) -- SB40051-00 € 30.00
Hard Compression Kit (red) -- SB40052-00 € 30.00
Special soft Compression Kit (gold) -- SB40185-00 € 30.00
Special medium Compression Kit (orange) -- SB40186-00 € 30.00
Special firm Compression Kit (green) -- SB40187-00 € 30.00
Ebike Compression Kit (electric blue) -- SB40188-00 € 30.00
Compression kit service tool -- SB90277-00 € 28.00
Air chamber service tool -- SB-A056-01 € 14.00
Ultraviolet sticker for Black fork -- SB-A067-00 € 13.00
White sticker for Black fork -- SB-A068-00 € 13.00
Stealth sticker for Black fork -- SB-A069-00 € 13.00
Cool gray sticker for White fork -- SB-A070-00 € 13.00
Black sticker for Ultraviolet fork -- SB-A071-00 € 13.00
Loctite -- FD-L026-00 € 11.00
Lubricating Oil -- SB-B028-00 € 8.00
Cartridge Oil -- SB-B009-00 € 10.00
Grease -- SB-G018-00 € 8.00
