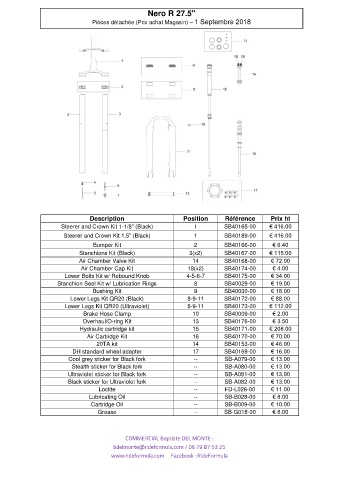

Page 18 - CATALOGUE PRO 2019 NON DEFINITIF PDF_Neat

Nero R 27.5"
Pièces détachée (Prix achat Magasin) – 1 Septembre 2018

Description Position Référence Prix ht
Steerer and Crown Kit 1-1/8" (Black) 1 SB40165-00 € 416.00
Steerer and Crown Kit 1.5" (Black) 1 SB40189-00 € 416.00

Bumper Kit 2 SB40166-00 € 6.40
Stanchions Kit (Black) 3(x2) SB40167-00 € 115.00
Air Chamber Valve Kit 14 SB40168-00 € 72.00
Air Chamber Cap Kit 18(x2) SB40174-00 € 4.00
Lower Bolts Kit w/ Rebound Knob 4-5-6-7 SB40175-00 € 34.00
Stanchion Seal Kit w/ Lubrication Rings 8 SB40029-00 € 19.00
Bushing Kit 9 SB40030-00 € 18.00
Lower Legs Kit QR20 (Black) 8-9-11 SB40172-00 € 88.00
Lower Legs Kit QR20 (Ultraviolet) 8-9-11 SB40173-00 € 112.00
Brake Hose Clamp 10 SB40009-00 € 2.00
Overhaul/O-ring Kit 13 SB40176-00 € 3.50
Hydraulic cartridge kit 15 SB40171-00 € 208.00
Air Cartridge Kit 16 SB40170-00 € 70.00
20TA kit 14 SB40153-00 € 46.00
DH standard wheel adapter 17 SB40169-00 € 16.00
Cool grey sticker for Black fork -- SB-A079-00 € 13.00
Stealth sticker for Black fork -- SB-A080-00 € 13.00
Ultraviolet sticker for Black fork -- SB-A081-00 € 13.00
Black sticker for Ultraviolet fork -- SB-A082-00 € 13.00
Loctite -- FD-L026-00 € 11.00
Lubricating Oil -- SB-B028-00 € 8.00
Cartridge Oil -- SB-B009-00 € 10.00
Grease -- SB-G018-00 € 8.00

COMMERCIAL Baptiste DEL MONTE :
bdelmonte@rideformula.com / 06 79 87 53 25
www.rideformula.com Facebook : RideFormula
