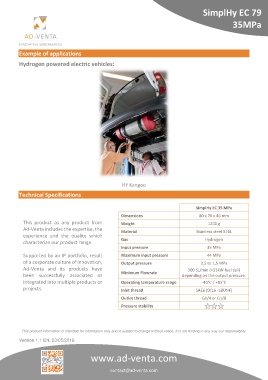

SimplHy EC 79
35MPa
Example of applications
Hydrogen powered electric vehicles:
HY Kangoo
Technical Specifications
SimplHy EC 35 MPa
Dimensions 80 x 70 x 40 mm
This product as any product from Weight 1200 g
Ad-Venta includes th e expertise, the Material Stainless steel 316L
experience and the quality which
Gas Hydrogen
characterize our product range.
Input pressure 35 MPa
Supported by an IP portfolio, result Maximum input pressure 44 MPa
of a corporate culture of innovation, Output pressure 0,5 to 1,5 MPa
Ad-Venta and its products have
500 SL/min (≈33kW fuel cell)
been successfully associated or Minimum Flowrate depending on the output pressure.
integrated into multiple products or Operating temperature range -40°C / +85°C
projects.
Inlet thread SAE6 (9/16 -18UNF)
Outlet thread G1/4 or G1/8
Pressure stability
This product information is intended for information only and is subject to change without notice. It is not binding in any way our responsibility.
Version 1.1 EN, 23/05/2016
