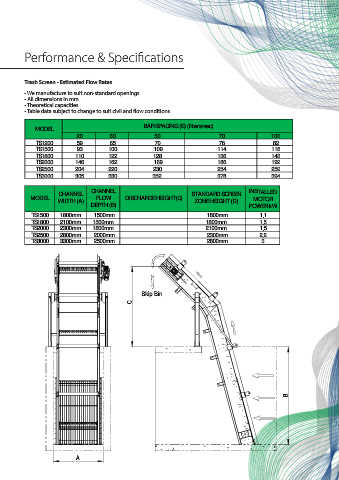

TRASH SCREEN

Description Performance & Speci cations
SCREENING EQUIPMENT

This automated inclined multi back / front rake screen is designed to remove Trash Screen - Estimated Flow Rates
oating or suspended debris from the raw incoming sewage system. The screen- • We manufacture to suit non-standard openings
ings waste is removed by multiple rakes that engage into a submerged set o • All dimensions in mm
screen eld bars were the sewage ows through the back of the screen eld at the • Theoretical capacities
• Table data subject to change to suit civil and ow conditions
lower ow section and this changes to a front rake type screen eld further up the
xed screen eld. BAR SPACING (E) (liters/sec)
The complete screen eld is held in position by sole plate at the bottom of the MODEL
screen frame and debris plate at the top of the screen eld. TS1200 20 30 50 70 100
65
59
70
76
82
The multiple rakes positioned maximum 1800mm apart are attached to a convey- TS1500 93 100 109 114 118
er chain system, to clean the screen eld of accumulated screenings waste. This TS1800 110 122 128 136 143
double endless conveyor chain system, comprises of two chains top drive sprock- TS2000 146 162 169 186 192
230
ets and bottom turnabout assemblies, one set of drive chain sprockets at each TS2500 204 220 352 254 259
TS3000
394
378
330
305
side of the screen frame.
The chain is driven by gearbox drive assemble mounted to the top left or right of CHANNEL INSTALLED
the screen frame. This complete assemble is adjustable to keep the drive chain at MODEL CHANNEL FLOW DISCHARGE HEIGHT(C) STANDARD SCREEN MOTOR
the correct tension. This screen design has no submerged bearings or bottom WIDTH (A) DEPTH (B) ZONE HEIGHT (D) POWER kW
idler sprockets. TS1500 1800mm 1500mm 1800mm 1,1
Once the screening waste leaves the screen eld, the waste is guided up to TS1800 2100mm 1500mm 1800mm 1,5
discharge point by a debris plate. Where the screen waste discharges into a waste TS2000 2300mm 1800mm 2100mm 1,5
bin, conveyor or compactor for further treatment. TS2500 2800mm 2000mm 2300mm 2,2
3300mm
2800mm
TS3000
3
2500mm
The screens are generally manufactured from stainless steel pickled and passivat-
ed on component completion, then fully assembled and factory tested.
Application
6NLS %LQ
Pump Stations &
Waste Water plants
Irrigation systems
Mining Industry

Features & Bene ts

Higher ow capacity.
Heavy duty screening waste removal.
Waste discharge four to six times higher than mono rake screen.
High capture rate
Low maintenance cost. %
-Entire construction in stainless steel.
-Maintenance free bearings for under water function.
Manufactured in South Africa.
-Spares locally manufactured
-Quick availability
