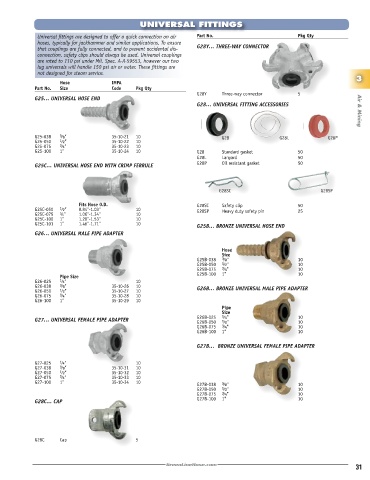

Page 33 - 2022FittingsCatalog

UNIVERSAL FITTINGS

Universal fittings are designed to offer a quick connection on air Part No. Pkg Qty
hoses, typically for jackhammer and similar applications. To ensure
that couplings are fully connected, and to prevent accidental dis- G28Y… THREE-WAY CONNECTOR
connection, safety clips should always be used. Universal couplings
are rated to 110 psi under Mil. Spec. A-A-59553, however our two
lug universals will handle 150 psi air or water. These fittings are
not designed for steam service.
Hose IMPA 3
Part No. Size Code Pkg Qty
G28Y Three-way connector 5
G25… UNIVERSAL HOSE END
G28… UNIVERSAL FITTING ACCESSORIES Air & Mining

G25-038 3 ⁄8" 35-10-21 10 G28 G28L G28P
G25-050 1 ⁄2" 35-10-22 10
G25-075 3 ⁄4" 35-10-23 10
G25-100 1" 35-10-24 10 G28 Standard gasket 50
G28L Lanyard 50
G25C… UNIVERSAL HOSE END WITH CRIMP FERRULE G28P Oil resistant gasket 50

G28SC G28SP

Fits Hose O.D. G28SC Safety clip 50
G25C-050 1 ⁄2" 0.84"-1.03" 10 G28SP Heavy duty safety pin 25
G25C-075 ¾" 1.06"-1.34" 10
G25C-100 1" 1.28"-1.53" 10
G25C-101 1" 1.46"-1.71" 10 G25B… BRONZE UNIVERSAL HOSE END
G26… UNIVERSAL MALE PIPE ADAPTER

Hose
Size
G25B-038 3 ⁄8" 10
G25B-050 1 ⁄2" 10
G25B-075 3 ⁄4" 10
Pipe Size G25B-100 1" 10
G26-025 1 ⁄4" 10
G26-038 3 ⁄8" 35-10-26 10 G26B… BRONZE UNIVERSAL MALE PIPE ADAPTER
G26-050 1 ⁄2" 35-10-27 10
G26-075 3 ⁄4" 35-10-28 10
G26-100 1" 35-10-29 10
Pipe
Size
G27… UNIVERSAL FEMALE PIPE ADAPTER G26B-025 1 ⁄4" 10
10
1 ⁄2"
G26B-050
G26B-075 3 ⁄4" 10
G26B-100 1" 10
G27B… BRONZE UNIVERSAL FEMALE PIPE ADAPTER

G27-025 1 ⁄4" 10
G27-038 3 ⁄8" 35-10-31 10
G27-050 1 ⁄2" 35-10-32 10
G27-075 3 ⁄4" 35-10-33 10
G27-100 1" 35-10-34 10 G27B-038 3 ⁄8" 10
G27B-050 1 ⁄2" 10
G27B-075 3 ⁄4" 10
G28C… CAP G27B-100 1" 10

G28C Cap 5

31
