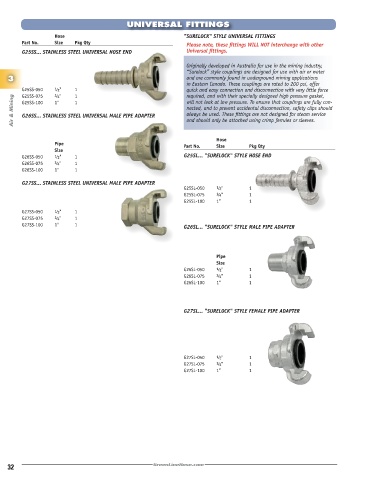

Page 34 - 2022FittingsCatalog

UNIVERSAL FITTINGS

Hose "SURELOCK" STYLE UNIVERSAL FITTINGS
Part No. Size Pkg Qty Please note, these fittings WILL NOT interchange with other
G25SS... STAINLESS STEEL UNIVERSAL HOSE END Universal fittings.

Originally developed in Australia for use in the mining industry,
“Surelock” style couplings are designed for use with air or water
3 and are commonly found in underground mining applications
in Eastern Canada. These couplings are rated to 200 psi, offer
G25SS-050 1 ⁄2" 1 1 quick and easy connection and disconnection with very little force
required, and with their specially designed high pressure gasket,
3 ⁄4"
G25SS-075
Air & Mining G25SS-100 1" 1 will not leak at low pressure. To ensure that couplings are fully con-
nected, and to prevent accidental disconnection, safety clips should
always be used. These fittings are not designed for steam service
G26SS... STAINLESS STEEL UNIVERSAL MALE PIPE ADAPTER
and should only be attached using crimp ferrules or sleeves.

Hose
Pipe Part No. Size Pkg Qty
Size
G26SS-050 1 ⁄2" 1 G25SL... "SURELOCK" STYLE HOSE END
G26SS-075 3 ⁄4" 1
G26SS-100 1" 1

G27SS... STAINLESS STEEL UNIVERSAL MALE PIPE ADAPTER
G25SL-050 1 ⁄2" 1
G25SL-075 3 ⁄4" 1

G25SL-100 1" 1
G27SS-050 1 ⁄2" 1
G27SS-075 3 ⁄4" 1
G27SS-100 1" 1 G26SL... "SURELOCK" STYLE MALE PIPE ADAPTER

Pipe
Size
G26SL-050 1 ⁄2" 1
G26SL-075 3 ⁄4" 1
G26SL-100 1" 1

G27SL... "SURELOCK" STYLE FEMALE PIPE ADAPTER

G27SL-050 1 ⁄2" 1
G27SL-075 3 ⁄4" 1
G27SL-100 1" 1

32
