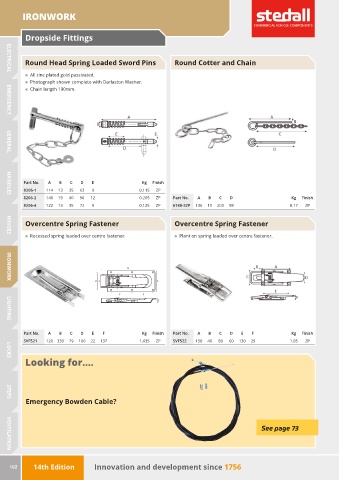

Page 104 - Stedall Parts Catalogue 14th Edition

IRONWORK

Dropside Fittings

Round Head Spring Loaded Sword Pins Round Cotter and Chain

ELECTRICAL
„ All zinc plated gold passivated.
„ Photograph shown complete with Darlaston Washer.
„ Chain length 190mm.

EMERGENCY

GENERAL

Part No. A B C D E Kg Finish
8206-1 114 13 35 63 9 0.115 ZP
HANDLES
8206-2 148 19 40 90 12 0.205 ZP Part No. A B C D Kg Finish
8206-4 122 13 35 72 9 0.125 ZP 6188-3ZP 136 10 200 98 0.17 ZP

Overcentre Spring Fastener Overcentre Spring Fastener

HINGES
„ Recessed spring loaded over centre fastener. „ Plant on spring loaded over centre fastener.

B

D C A
IRONWORK
F F
E

LIGHTING
Part No. A B C D E F Kg Finish Part No. A B C D E F Kg Finish
SVF521 120 330 79 100 22 137 1.435 ZP SVF522 150 40 80 60 130 29 1.05 ZP

Looking for....
LOCKS

Emergency Bowden Cable?
STEPS

See page 73

VENTILATION

102 14th Edition Innovation and development since 1756
