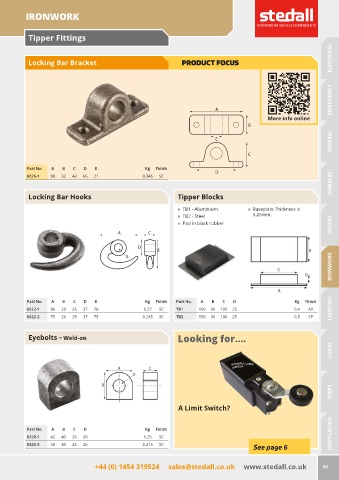

Page 101 - Stedall Parts Catalogue 14th Edition

IRONWORK
IRONWORK

Tipper Fittings

ELECTRICAL

Locking Bar Bracket PRODUCT FOCUS

EMERGENCY

A
More info online
B
GENERAL
E

C

Part No. A B C D E Kg Finish
D
HANDLES
6025-1 90 32 42 66 21 0.345 SC

Locking Bar Hooks Tipper Blocks

„ TB1 - Aluminium „ Baseplate Thickness is
„ TB2 - Steel 5.25mm.
„ Pad in black rubber HINGES
A C

D
E
IRONWORK
B

Part No. A B C D E Kg Finish Part No. A B C D Kg Finish
6022-1 86 20 25 37 70 0.27 SC TB1 150 90 100 25 0.4 AP LIGHTING
6022-2 75 26 25 37 75 0.235 SC TB2 150 90 100 25 0.5 SP

Eyebolts — Weld-on Looking for....
LOCKS

STEPS

A Limit Switch?

Part No. A B C D Kg Finish
8320-1 42 43 25 20 0.25 SC VENTILATION
8320-3 40 45 25 26 0.215 SC
See page 6
