HINGES
Bulkhead Systems
ELECTRICAL

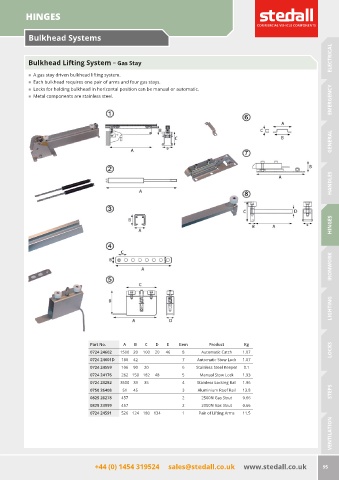

Bulkhead Lifting System — Gas Stay
A gas stay driven bulkhead lifting system.
Each bulkhead requires one pair of arms and four gas stays.
EMERGENCY
Locks for holding bulkhead in horizontal position can be manual or automatic.
Metal components are stainless steel.
GENERAL
HANDLES
HINGES
IRONWORK
LIGHTING
Part No. A B C D E Item Product Kg
0724 24602 1500 20 100 20 46 8 Automatic Catch 1.07 LOCKS
0724 24601D 180 42 7 Automatic Stow Lock 1.07
0724 24559 106 90 20 6 Stainless Steel Keeper 0.1
0724 24176 262 150 182 48 5 Manual Stow Lock 1.93
0724 23282 3500 33 35 4 Stainless Locking Rail 1.96
0750 26408 51 45 3 Aluminium Roof Rail 13.8 STEPS
0825 26278 457 2 2500N Gas Strut 0.66
0825 23999 457 2 2000N Gas Strut 0.66
0724 24591 526 124 180 134 1 Pair of Lifting Arms 11.5
