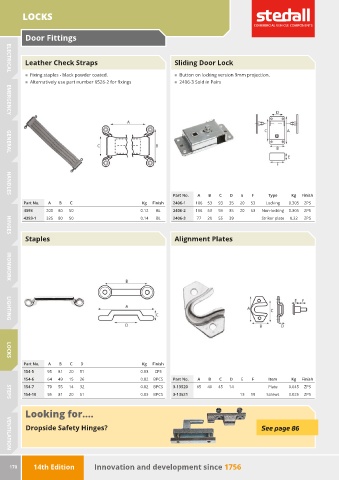

Page 172 - Stedall Parts Catalogue 14th Edition

LOCKS

Door Fittings

Leather Check Straps Sliding Door Lock

ELECTRICAL
„ Fixing staples - black powder coated. „ Button on locking version 9mm projection.
„ Alternatively use part number 6526-2 for fixings „ 2406-3 Sold in Pairs

EMERGENCY

GENERAL

Part No. A B C D E F Type Kg Finish
HANDLES
Part No. A B C Kg Finish 2406-1 106 53 93 35 20 53 Locking 0.305 ZPS
4393 200 80 50 0.12 BL 2406-2 106 53 93 35 20 53 Non-locking 0.305 ZPS

4393-1 325 80 50 0.14 BL 2406-3 77 20 55 39 Striker plate 0.22 ZPS

Staples Alignment Plates
HINGES

IRONWORK

LIGHTING

LOCKS
Part No. A B C D Kg Finish
154-5 95 81 20 51 0.03 CPS
154-6 64 49 15 26 0.02 BPCS Part No. A B C D E F Item Kg Finish
154-7 70 55 14 32 0.02 BPCS 3-13520 65 40 45 14 Plate 0.045 ZPS
154-10 95 81 20 51 0.03 BPCS 3-13521 13 19 Screws 0.025 ZPS
STEPS
Looking for....

Dropside Safety Hinges? See page 86

VENTILATION

170 14th Edition Innovation and development since 1756
