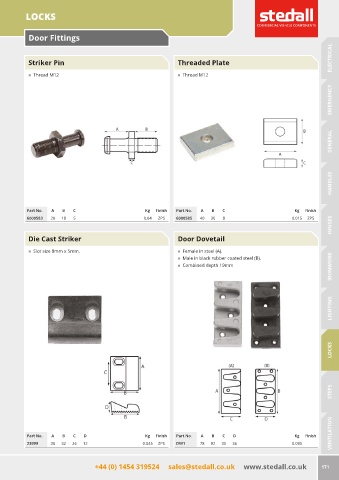

P. 173

LOCKS



           Door Fittings

                                                                                                                     ELECTRICAL

           Striker Pin                                         Threaded Plate

           „  Thread M12                                       „  Thread M12
                                                                                                                     EMERGENCY








                                                                                                                     GENERAL








                                                                                                                     HANDLES






          Part No.  A  B   C                        Kg  Finish  Part No.  A  B  C                       Kg  Finish
          6000583  20  18  5                        0.04  ZPS  6000585  40  30  8                       0.015  ZPS
                                                                                                                     HINGES

           Die Cast Striker                                    Door Dovetail


           „  Slot size 8mm x 5mm.                             „  Female in steel (A).
                                                                                                                     IRONWORK
                                                               „  Male in black rubber coated steel (B).
                                                               „  Combined depth 19mm




                                                                                                                     LIGHTING








                                                                                                                     LOCKS







                                                                                                                     STEPS





                                                                                                                     VENTILATION


          Part No.  A  B   C  D                     Kg  Finish  Part No.  A  B  C  D                    Kg  Finish
          23999    38  32  26  12                  0.045  ZPS  DW1     78  82  35  36                   0.095


                                  +44 (0) 1454 319524     sales@stedall.co.uk     www.stedall.co.uk               171
