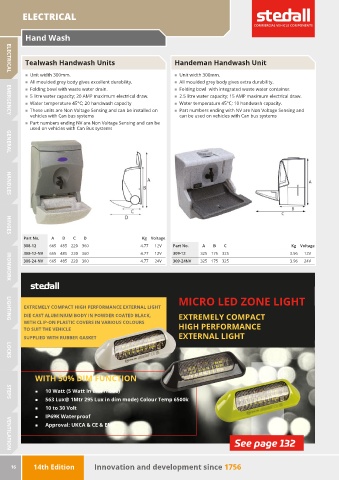

Page 18 - Stedall Parts Catalogue 14th Edition
P. 18

ELECTRICAL



          Hand Wash




          Tealwash Handwash Units                             Handeman Handwash Unit

    ELECTRICAL
          „  Unit width 300mm.                                „  Unit width 300mm.
          „  All moulded grey body gives excellent durability.  „  All moulded grey body gives extra durability.
          „  Folding bowl with waste water drain.             „  Folding bowl  with integrated waste water container.
          „  5 litre water capacity; 20 AMP maximum electrical draw.  „  2.5 litre water capacity; 15 AMP maximum electrical draw.
          „  Water temperature 45°C; 20 handwash capacity     „  Water temperature 45°C; 10 handwash capacity.
          „  These units are Non Voltage Sensing and can be installed on   „  Part numbers ending with NV are Non Voltage Sensing and
            vehicles with Can bus systems                       can be used on vehicles with Can bus systems
    EMERGENCY
          „  Part numbers ending NV are Non Voltage Sensing and can be
            used on vehicles with Can Bus systems




    GENERAL







    HANDLES





    HINGES
         Part No.  A   B   C  D                    Kg  Voltage
         308-12   665 485 220 360                 4.77  12V   Part No.  A   B   C                      Kg  Voltage
         308-12-NV  665 485 220 360               4.77  12V   309-12   325 175 325                     3.96  12V
         308-24-NV  665 485 220 360               4.77  24V   309-24NV  325 175 325                    3.96  24V


    IRONWORK
                                                                MICRO LED ZONE LIGHT

         EXTREMELY COMPACT HIGH PERFORMANCE EXTERNAL LIGHT
         DIE CAST ALUMINIUM BODY IN POWDER COATED BLACK,        EXTREMELY COMPACT
         WITH CLIP-ON PLASTIC COVERS IN VARIOUS COLOURS
    LIGHTING
         TO SUIT THE VEHICLE                                    HIGH PERFORMANCE
         SUPPLIED WITH RUBBER GASKET                            EXTERNAL LIGHT



    LOCKS


             WITH 50% DIM FUNCTION


             „   10 Watt (5 Watt In dim mode)
             „   563 Lux@ 1Mtr 295 Lux in dim mode) Colour Temp 6500k
    STEPS
             „   10 to 30 Volt
             „   IP69K Waterproof
             „   Approval: UKCA & CE & EMC

                                                                                   See page 132

    VENTILATION
