ELECTRICAL
ELECTRICAL

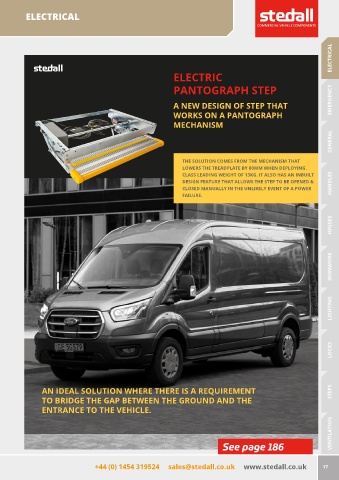

ELECTRIC
PANTOGRAPH STEP
A NEW DESIGN OF STEP THAT EMERGENCY
WORKS ON A PANTOGRAPH
MECHANISM
GENERAL
THE SOLUTION COMES FROM THE MECHANISM THAT
LOWERS THE TREADPLATE BY 80MM WHEN DEPLOYING.
CLASS LEADING WEIGHT OF 13KG. IT ALSO HAS AN INBUILT
DESIGN FEATURE THAT ALLOWS THE STEP TO BE OPENED & HANDLES
CLOSED MANUALLY IN THE UNLIKELY EVENT OF A POWER
FAILURE.
HINGES
IRONWORK
LIGHTING
LOCKS
AN IDEAL SOLUTION WHERE THERE IS A REQUIREMENT STEPS
TO BRIDGE THE GAP BETWEEN THE GROUND AND THE
ENTRANCE TO THE VEHICLE.
VENTILATION
See page 186
