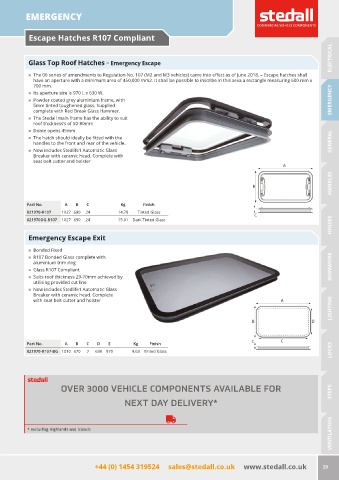

Page 31 - Stedall Parts Catalogue 14th Edition

EMERGENCY

Escape Hatches R107 Compliant

ELECTRICAL

Glass Top Roof Hatches — Emergency Escape

„ The 06 series of amendments to Regulation No. 107 (M2 and M3 vehicles) came into effect as of June 2018. – Escape hatches shall
have an aperture with a minimum area of 450,000 mm2. It shall be possible to inscribe in this area a rectangle measuring 600 mm x
700 mm.
„ Its aperture size is 970 L x 630 W.
„ Powder coated grey aluminium frame, with EMERGENCY
5mm tinted toughened glass. Supplied
complete with Red Break Glass Hammer.
„ The Stedall main frame has the ability to suit
roof thickness’s of 50-80mm
„ Dome opens 45mm
„ The hatch should ideally be fitted with the
handles to the front and rear of the vehicle. GENERAL
„ Now includes Stedlife1 Automatic Glass
Breaker with ceramic head. Complete with
seat belt cutter and holster

HANDLES

Part No. A B C Kg Finish
821970-R107 1027 690 24 14.78 Tinted Glass
HINGES
821970DG-R107 1027 690 24 15.01 Dark Tinted Glass

Emergency Escape Exit

„ Bonded Fixed
„ R107 Bonded Glass complete with
aluminium trim ring
„ Glass R107 Compliant IRONWORK
„ Suits roof thickness 29-70mm achieved by
utilising provided cut line
„ Now includes Stedlife1 Automatic Glass
Breaker with ceramic head. Complete
LIGHTING
with seat belt cutter and holster

Part No. A B C D E Kg Finish
821970-R107-BG 1010 670 7 630 970 9.63 Tinted Glass LOCKS

OVER 3000 VEHICLE COMPONENTS AVAILABLE FOR STEPS

NEXT DAY DELIVERY*

VENTILATION

* excluding Highlands and Islands

+44 (0) 1454 319524 sales@stedall.co.uk www.stedall.co.uk 29
