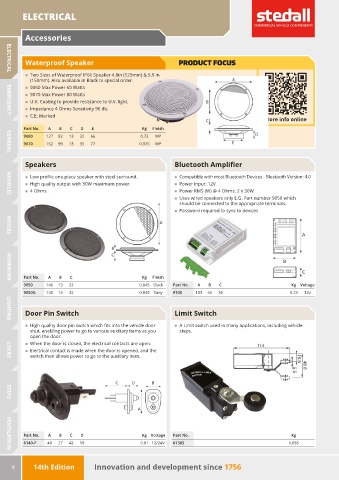

Page 8 - Stedall Parts Catalogue 14th Edition

ELECTRICAL

Accessories

Waterproof Speaker PRODUCT FOCUS

ELECTRICAL
„ Two Sizes of Waterproof IP66 Speaker 4.8in (125mm) & 5.9 in
(150mm). Also available in Black to special order.
„ 9060 Max Power 60 Watts
„ 9070 Max Power 80 Watts
„ U.V. Coating to provide resistance to U.V. light.
„ Impedance 4 Ohms Sensitivity 90 db.
„ C.E. Marked
EMERGENCY
More info online
Part No. A B C D E Kg Finish
9060 127 82 13 32 66 0.72 WP
9070 152 99 13 35 77 0.975 WP

GENERAL
Speakers Bluetooth Amplifier

„ Low profile one-piece speaker with steel surround. „ Compatible with most Bluetooth Devices - Bluetooth Version: 4.0
„ High quality output with 30W maximum power. „ Power Input: 12V
„ 4 Ohms „ Power RMS (W) @ 4 Ohms: 2 x 30W
HANDLES
„ Uses wired speakers only E.G. Part number 9050 which
should be connected to the appropriate terminals.

„ Password required to sync to devices

HINGES

Part No. A B C Kg Finish
IRONWORK
9050 140 13 32 0.845 Black Part No. A B C Kg Voltage
9050G 140 13 32 0.845 Grey 9100 103 66 30 0.23 12v

Door Pin Switch Limit Switch
LIGHTING
„ High quality door pin switch which fits into the vehicle door „ A Limit switch used in many applications, including vehicle
shut, enabling power to go to various auxiliary items as you steps.
open the door.
„ When the door is closed, the electrical contacts are open.
„ Electrical contact is made when the door is opened, and the
switch then allows power to go to the auxiliary item.
LOCKS

STEPS

Part No. A B C D Kg Voltage Part No. Kg
6140-P 40 27 42 19 0.01 12/24V 6138S 0.085

VENTILATION

6 14th Edition Innovation and development since 1756
