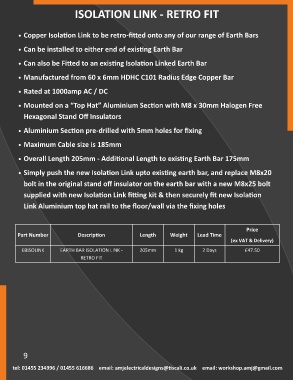

ISOLATION LINK - RETRO FIT

• Copper Isola-on Link to be retro-fiAed onto any of our range of Earth Bars

• Can be installed to either end of exis-ng Earth Bar

• Can also be FiAed to an exis-ng Isola-on Linked Earth Bar

• Manufactured from 60 x 6mm HDHC C101 Radius Edge Copper Bar

• Rated at 1000amp AC / DC

• Mounted on a “Top Hat” Aluminium Sec-on with M8 x 30mm Halogen Free

Hexagonal Stand Off Insulators

• Aluminium Sec-on pre-drilled with 5mm holes for fixing

• Maximum Cable size is 185mm

• Overall Length 205mm - Addi-onal Length to exis-ng Earth Bar 175mm

• Simply push the new Isola-on Link upto exis-ng earth bar, and replace M8x20

bolt in the original stand off insulator on the earth bar with a new M8x25 bolt

supplied with new Isola-on Link fiDng kit & then securely fit new Isola-on

Link Aluminium top hat rail to the floor/wall via the fixing holes

Price
Part Number Descrip-on Length Weight Lead Time
(ex VAT & Delivery)

EBISOLINK EARTH BAR ISOLATION LINK - 205mm 1 kg 2 Days £47.50
RETRO FIT

9
