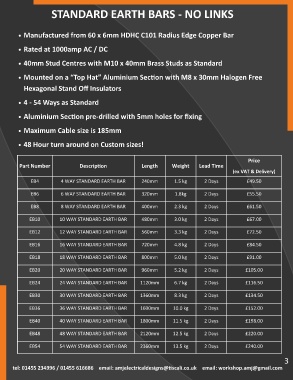

Page 4 - STANDARD EARTH BAR CATALOGUE
P. 4
STANDARD EARTH BARS - NO LINKS
• Manufactured from 60 x 6mm HDHC C101 Radius Edge Copper Bar
• Rated at 1000amp AC / DC
• 40mm Stud Centres with M10 x 40mm Brass Studs as Standard
• Mounted on a “Top Hat” Aluminium Sec-on with M8 x 30mm Halogen Free
Hexagonal Stand Off Insulators
• 4 - 54 Ways as Standard
• Aluminium Sec-on pre-drilled with 5mm holes for fixing
• Maximum Cable size is 185mm
• 48 Hour turn around on Custom sizes!
Price
Part Number Descrip-on Length Weight Lead Time
(ex VAT & Delivery)
EB4 4 WAY STANDARD EARTH BAR 240mm 1.5 kg 2 Days £49.50
EB6 6 WAY STANDARD EARTH BAR 320mm 1.8kg 2 Days £55.50
EB8 8 WAY STANDARD EARTH BAR 400mm 2.3 kg 2 Days £61.50
EB10 10 WAY STANDARD EARTH BAR 480mm 3.0 kg 2 Days £67.00
EB12 12 WAY STANDARD EARTH BAR 560mm 3.3 kg 2 Days £72.50
EB16 16 WAY STANDARD EARTH BAR 720mm 4.8 kg 2 Days £84.50
EB18 18 WAY STANDARD EARTH BAR 800mm 5.0 kg 2 Days £91.00
EB20 20 WAY STANDARD EARTH BAR 960mm 5.2 kg 2 Days £105.00
EB24 24 WAY STANDARD EARTH BAR 1120mm 6.7 kg 2 Days £116.50
EB30 30 WAY STANDARD EARTH BAR 1360mm 8.3 kg 2 Days £134.50
EB36 36 WAY STANDARD EARTH BAR 1600mm 10.0 kg 2 Days £152.00
EB40 40 WAY STANDARD EARTH BAR 1800mm 11.5 kg 2 Days £198.00
EB48 48 WAY STANDARD EARTH BAR 2120mm 12.5 kg 2 Days £220.00
EB54 54 WAY STANDARD EARTH BAR 2360mm 13.5 kg 2 Days £240.00
3
