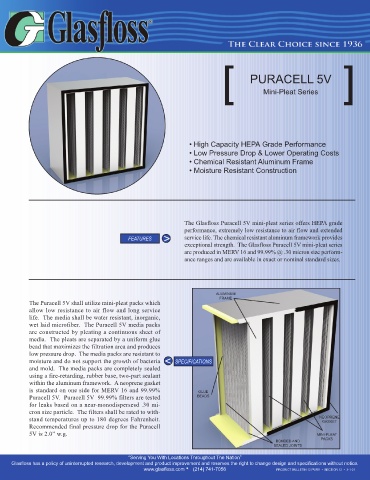

Page 168 - 2021'03 FULL CATALOG

[ ]
P R A ELL 5V
U
C
M ini-Pleat Series

H
• igh apacity EPA Grade Perform ance
H
C
D
C
• Low Pressure rop & Low er Operating osts
R
C
• hem ical esistant Alum inum Fram e
• oisture esistant onstruction
M
R
C

A
The G lasfloss Puracell 5V mini-pleat series offers H EP grade
performance, extremely low resistance to air flow and extended
w
FEATURES > service life. The chemical resistant aluminum frame ork provides
exceptional strength. The lasfloss Puracell 5 mini-pleat series
G
V
V
M
%
are produced in ER 16 and 99.99 @ .30 micron size perform-
ance ranges and are available in exact or nominal standard sizes.

ALU M I U M
N
F A E
M
R
The Puracell 5V shall utilize mini-pleat packs hich
w
allow low resistance to air flow and long service
life. The media shall be w ater resistant, inorganic,
w et laid microfiber. The Puracell 5V media packs
are constructed by pleating a continuous sheet of
media. The pleats are separated by a uniform glue
bead that maximizes the filtration area and produces
low pressure drop. The media packs are resistant to
moisture and do not support the grow th of bacteria < SPECIFICATIONS
and mold. The media packs are completely sealed
using a fire-retarding, rubber base, tw o-part sealant
w ithin the aluminum framew ork. neoprene gasket
A
V
is standard on one side for M ER 16 and 99.99% GLU E
Puracell 5V . Puracell 5V 99.99% filters are tested BEA S
D
for leaks based on a near-monodispersesd .30 mi-
w
cron size particle. The filters shall be rated to ith-
R
N
stand temperatures up to 180 degrees Fahrenheit. N EOP E E
GASKET
Recommended final pressure drop for the Puracell
5V is 2.0” w .g. M I I-PLEAT
N
C
PA KS
D
N
N
BO D E A D
N
SEALE JOI TS
D
“Serving You With Locations Throughout The ation”
N
m
m
Glasfloss has a policy of uninterrupted research, develop ent and product i prove ent and reserves the right to change design and specifications ithout notice.
m
w
w w w .glasfloss.com · (214) 741-7056 P O U C T B LLETI 12 P R V • SEC TIO 12 • 3-1-21
