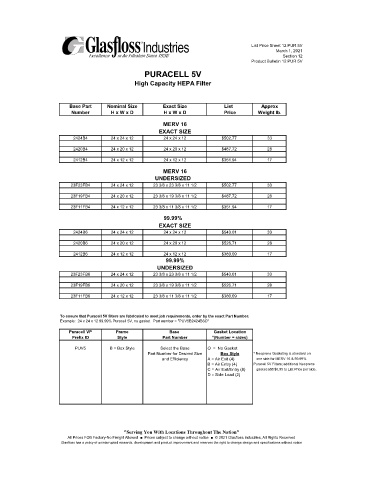

Page 170 - 2021'03 FULL CATALOG

List Price Sheet 12 PUR 5V
March 1, 2021
Section 12
Product Bulletin 12 PUR 5V
PURACELL 5V
High Capacity HEPA Filter

Base Part Nominal Size Exact Size List Approx
Number H x W x D H x W x D Price Weight lb.
MERV 16
EXACT SIZE
2424B4 24 x 24 x 12 24 x 24 x 12 $502.77 33
2420B4 24 x 20 x 12 24 x 20 x 12 $487.72 28
2412B4 24 x 12 x 12 24 x 12 x 12 $351.94 17

MERV 16
UNDERSIZED
23F23FB4 24 x 24 x 12 23 3/8 x 23 3/8 x 11 1/2 $502.77 33
23F19FB4 24 x 20 x 12 23 3/8 x 19 3/8 x 11 1/2 $487.72 28
23F11FB4 24 x 12 x 12 23 3/8 x 11 3/8 x 11 1/2 $351.94 17
99.99%
EXACT SIZE
2424B6 24 x 24 x 12 24 x 24 x 12 $543.01 33

2420B6 24 x 20 x 12 24 x 20 x 12 $526.71 28
2412B6 24 x 12 x 12 24 x 12 x 12 $380.09 17
99.99%
UNDERSIZED
23F23FB6 24 x 24 x 12 23 3/8 x 23 3/8 x 11 1/2 $543.01 33
23F19FB6 24 x 20 x 12 23 3/8 x 19 3/8 x 11 1/2 $526.71 28

23F11FB6 24 x 12 x 12 23 3/8 x 11 3/8 x 11 1/2 $380.09 17

To ensure that Puracell 5V filters are fabricated to meet job requirements, order by the exact Part Number.
Example: 24 x 24 x 12 99.99% Puracell 5V, no gasket. Part number = "PUV5B2424B6O"
Puracell VP Frame Base Gasket Location
Prefix ID Style Part Number *(Number = sides)
PUV5 B = Box Style Select the Base O = No Gasket
y
x
o

l* Neoprene Gasketing is standard on
t
S
B
e
Part Number for Desired Size
A
and Efficiency Air Exit (4)

=
one side for MERV 16 & 99.99%
Puracell 5V Filters; additional Neoprene
B = Air Entry (4)
C = Air Exit/Entry (8)
gasket add $6.95 to List Price per side.
D = Side Load (2)
"Serving You With Locations Throughout The Nation"
All Prices FOB Factory-No Freight Allowed ■ Prices subject to change without notice ■ © 2021 Glasfloss Industries, All Rights Reserved
Glasfloss has a policy of uninterrupted research, development and product improvement and reserves the right to change design and specifications without notice
