P. 29

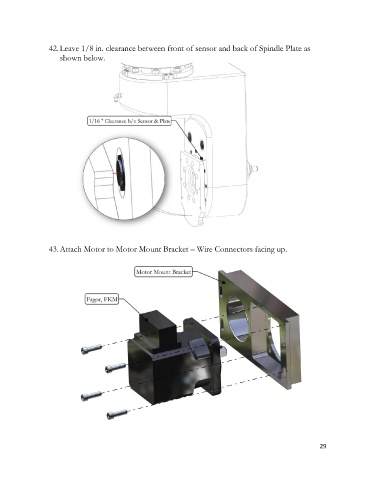

42. Leave 1/8 in. clearance between front of sensor and back of Spindle Plate as
shown below.
43. Attach Motor to Motor Mount Bracket – Wire Connectors facing up.
29
