Page 31 - 16 HP Cast Head_Neat
P. 31

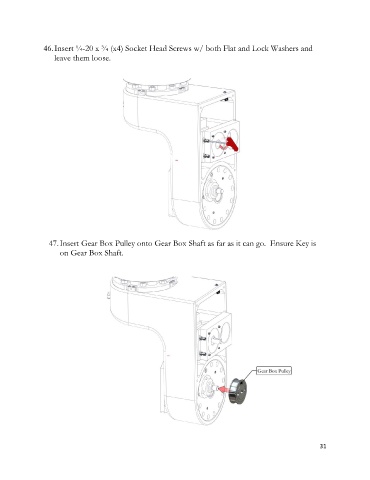

46. Insert ¼-20 x ¾ (x4) Socket Head Screws w/ both Flat and Lock Washers and
leave them loose.
47. Insert Gear Box Pulley onto Gear Box Shaft as far as it can go. Ensure Key is
on Gear Box Shaft.
31
