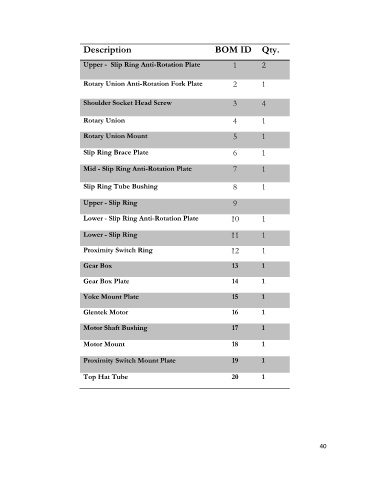

Page 40 - 16 HP Cast Head_Neat

Description BOM ID Qty.

Upper - Slip Ring Anti-Rotation Plate 1 2

Rotary Union Anti-Rotation Fork Plate 2 1

Shoulder Socket Head Screw 3 4

Rotary Union 4 1

Rotary Union Mount 5 1

Slip Ring Brace Plate 6 1

Mid - Slip Ring Anti-Rotation Plate 7 1

Slip Ring Tube Bushing 8 1

Upper - Slip Ring 9

Lower - Slip Ring Anti-Rotation Plate 10 1

Lower - Slip Ring 11 1

Proximity Switch Ring 12 1

Gear Box 13 1

Gear Box Plate 14 1

Yoke Mount Plate 15 1

Glentek Motor 16 1

Motor Shaft Bushing 17 1

Motor Mount 18 1

Proximity Switch Mount Plate 19 1

Top Hat Tube 20 1

40
