P. 41

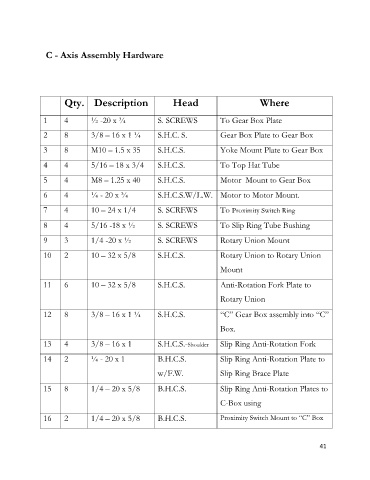

C - Axis Assembly Hardware
Qty. Description Head Where
1 4 ½ -20 x ¾ S. SCREWS To Gear Box Plate
2 8 3/8 – 16 x 1 ¼ S.H.C. S. Gear Box Plate to Gear Box
3 8 M10 – 1.5 x 35 S.H.C.S. Yoke Mount Plate to Gear Box
4 4 5/16 – 18 x 3/4 S.H.C.S. To Top Hat Tube
5 4 M8 – 1.25 x 40 S.H.C.S. Motor Mount to Gear Box
6 4 ¼ - 20 x ¾ S.H.C.S.W/L.W. Motor to Motor Mount.
7 4 10 – 24 x 1/4 S. SCREWS To Proximity Switch Ring
8 4 5/16 -18 x ½ S. SCREWS To Slip Ring Tube Bushing
9 3 1/4 -20 x ½ S. SCREWS Rotary Union Mount
10 2 10 – 32 x 5/8 S.H.C.S. Rotary Union to Rotary Union
Mount
11 6 10 – 32 x 5/8 S.H.C.S. Anti-Rotation Fork Plate to
Rotary Union
12 8 3/8 – 16 x 1 ¼ S.H.C.S. “C” Gear Box assembly into “C”
Box.
13 4 3/8 – 16 x 1 S.H.C.S.-Shoulder Slip Ring Anti-Rotation Fork
14 2 ¼ - 20 x 1 B.H.C.S. Slip Ring Anti-Rotation Plate to
w/F.W. Slip Ring Brace Plate
15 8 1/4 – 20 x 5/8 B.H.C.S. Slip Ring Anti-Rotation Plates to
C-Box using
16 2 1/4 – 20 x 5/8 B.H.C.S. Proximity Switch Mount to “C” Box
41
