Page 86 - 16 HP Cast Head_Neat
P. 86

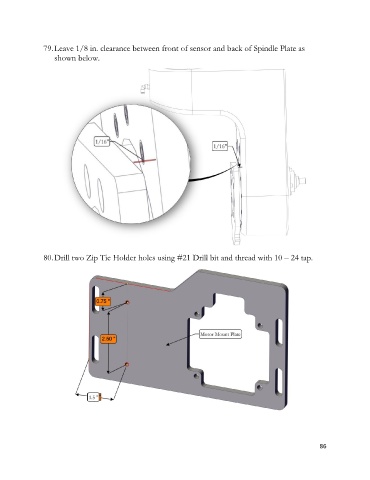

79. Leave 1/8 in. clearance between front of sensor and back of Spindle Plate as
shown below.
80. Drill two Zip Tie Holder holes using #21 Drill bit and thread with 10 – 24 tap.
86
