P. 90

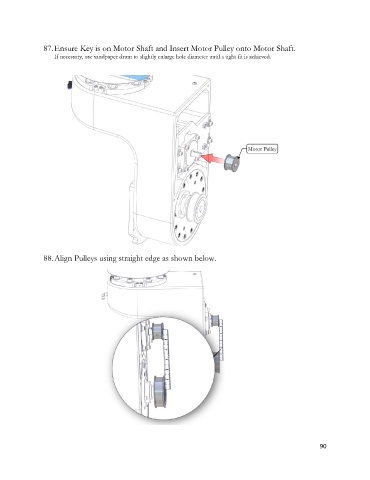

87. Ensure Key is on Motor Shaft and Insert Motor Pulley onto Motor Shaft.
If necessary, use sandpaper drum to slightly enlarge hole diameter until a tight fit is achieved.
88. Align Pulleys using straight edge as shown below.
90
