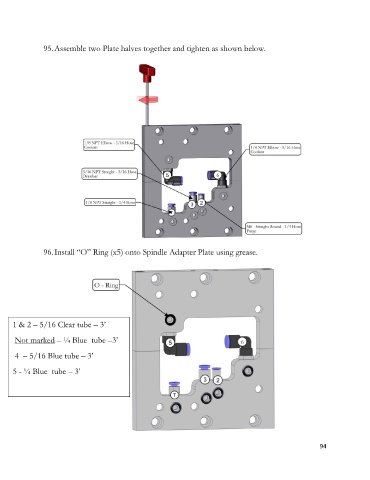

95. Assemble two Plate halves together and tighten as shown below.
96. Install “O” Ring (x5) onto Spindle Adapter Plate using grease.
1 & 2 – 5/16 Clear tube – 3’
Not marked – ¼ Blue tube –3’
4 – 5/16 Blue tube – 3’
5 - ¼ Blue tube – 3’
