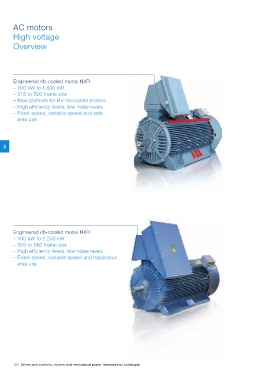

AC motors

High voltage

Overview

Engineered rib-cooled motor NXR
– 100 kW to 1,800 kW
– 315 to 500 frame size
– New platform for HV rib-cooled motors
– High efficiency levels, low noise levels
– Fixed-speed, variable-speed and safe
area use

6

Engineered rib-cooled motor HXR
– 100 kW to 2,250 kW
– 355 to 560 frame size
– High efficiency levels, low noise levels
– Fixed-speed, variable-speed and hazardous
area use
