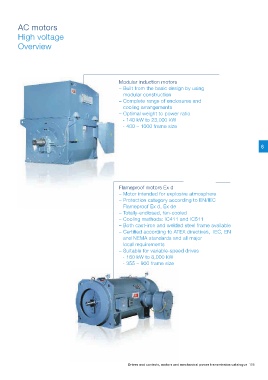

AC motors
High voltage
Overview
Modular induction motors
– Built from the basic design by using
modular construction
– Complete range of enclosures and
cooling arrangements
– Optimal weight to power ratio
- 140 kW to 23,000 kW
- 400 – 1000 frame size
6
Flameproof motors Ex d
– Motor intended for explosive atmosphere
– Protection category according to EN/IEC
Flameproof Ex d, Ex de
– Totally-enclosed, fan-cooled
– Cooling methods: IC411 and IC511
– Both cast-iron and welded steel frame available
– Certified according to ATEX directives, IEC, EN
and NEMA standards and all major
local requirements
– Suitable for variable-speed drives
- 160 kW to 8,000 kW
- 355 – 900 frame size
