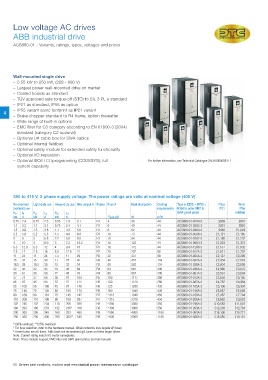

Page 58 - DMcatalogue2017

Low voltage AC drives

ABB industrial drive

ACS880-01 - Variants, ratings, types, voltages and prices

Wall-mounted single drive
– 0.55 kW to 250 kW, (208 - 690 V)
– Largest power wall-mounted drive on market
– Coated boards as standard
– TÜV approved safe torque-off (STO) to SIL 3 PL e standard
– IP21 as standard, IP55 as option
4 – IP55 variant same footprint as IP21 variant
– Brake chopper standard to R4 frame, option thereafter
– Wide range of built-in options
– EMC filter for C3 category according to EN 61800-3 (2004)
standard (category C2 optional)
– Optional UK cable box for SWA cables
– Optional internal fieldbus
– Optional safety module for extended safety functionality
– Optional I/O expansion
– Optional IEC61131programming (CODESYS), full For further information, see Technical Catalogue 3AUA0000098111
system capability

380 to 415 V, 3-phase supply voltage. The power ratings are valid at nominal voltage (400 V)
No-overload Light-duty use Heavy-duty use Max output A Frame Fuse A Heat dissipation Cooling Type (+ E200, + R700 + Price Price
(nominal) use requirements H358 to order EMC & IP21 IP55
SWA gland plate) (+B056)
P N I N P Ld I Ld P hd I hd
kW A kW A kW A † Type gG W m /h
3
0.75 2.4 0.75 2.3 0.55 1.8 3.1 R1 4 30 44 ACS880-01-02A4-3 £909 £947
1.1 3.3 1.1 3.1 0.75 2.4 4.1 R1 6 40 44 ACS880-01-03A3-3 £951 £991
1.5 4.0 1.5 3.8 1.1 3.3 5.6 R1 6 52 44 ACS880-01-04A0-3 £983 £1,024
2.2 5.6 2.2 5.3 1.5 4.0 6.8 R1 10 73 44 ACS880-01-05A6-3 £1,121 £1,165
3 8 3 6.8 2.2 5.6 9.5 R1 10 94 44 ACS880-01-07A2-3 £1,185 £1,232
4 10 4 8.9 3 7.2 12.2 R1 16 122 44 ACS880-01-09A4-3 £1,323 £1,374
5.5 12.9 5.5 12 4 9.4 16 R1 16 172 44 ACS880-01-12A6-3 £1,577 £1,632
7.5 17 7.5 16 5.5 12.6 21 R2 25 232 88 ACS880-01-017A-3 £1,671 £1,732
11 25 11 24 7.5 17 29 R2 32 337 88 ACS880-01-025A-3 £2,127 £2,200
15 32 15 30 11 25 42 R3 40 457 134 ACS880-01-032A-3 £2,434 £2,518
18.5 38 18.5 36 15 32 54 R3 50 562 134 ACS880-01-038A-3 £2,604 £2,699
22 45 22 43 19 38 64 R4 63 667 200 ACS880-01-045A-3 £2,960 £3,072
30 61 30 58 22 45 76 R4 80 907 200 ACS880-01-061A-3 £3,501 £3,634
37 72 37 68 30 61 104 R5 100 1117 280 ACS880-01-072A-3 £3,950 £4,105
45 87 45 83 37 72 122 R5 100 1120 280 ACS880-01-087A-3 £4,787 £4,964
55 105 55 100 45 87 148 R6 125 1295 435 ACS880-01-105A-3 £5,106 £5,304
75 145 75 138 55 105 178 R6 160 1440 435 ACS880-01-145A-3 £5,657 £5,886
90 169 90 161 75 145 247 R7 ∆ 315 1940 450 ACS880-01-169A-3 £7,452 £7,744
110 206 110 196 90 169 287 R7 ∆ 315 2310 450 ACS880-01-206A-3 £8,662 £9,023
132 246 132 234 110 206 350 R8 ∆ 350 3300 550 ACS880-01-246A-3 £10,583 £11,047
160 293 160 278 132 246* 418 R8 ∆ 400 3900 550 ACS880-01-293A-3 £12,238 £12,784
200 363 200 345 160 293 498 R9 ∆ 550 4800 1150 ACS880-01-363A-3 £15,108 £15,771
250 430 250 400 200 363** 545 R9 ∆ 630 6000 1150 ACS880-01-430A-3 £18,385 £19,131
*130% overload, **125% overload
† For fuse selection, refer to the hardware manual. Weak networks may require aR fuses
∆ These fuses are aR fuses, ABB does not recommend gG fuses on these larger drives
Note: Current rating match IE3 motor nameplates
Note: Prices include keypad, EMC filter and SWA gland plates and full manuals
