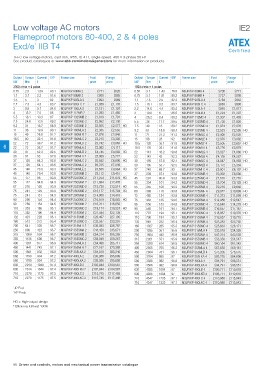

Low voltage AC motors IE2

Flameproof motors 80-400, 2 & 4 poles

Exd/e IIB T4 ATEX
*
Certified
TEFC low voltage motors, cast iron, IP55, IC 411, single-speed. 400 V 3-phase 50 Hz
See product catalogues or www.abb.com/motors&generators for more information on products.

Output Torque Current Eff † Frame size Foot Flange Output Torque Current Eff † Frame size Foot Flange
kW Nm I price price kW Nm I price price
3000 r/min = 2 poles 1500 r/min = 4 poles
0.75 2.5 1.59 80.1 M3JP/KP 80MA 2 £771 £820 0.55 3.7 1.43 76.6 M3JP/KP 80MA 4 £705 £771
1.1 3.7 2.2 81.6 M3JP/KP 80MB 2 £808 £885 0.75 5.1 1.81 80.2 M3JP/KP 80MB 4 £737 £808
1.5 5 3 82 M3JP/KP 90SLA 2 £893 £969 1.1 7.3 2.5 82.2 M3JP/KP 90SLA 4 £784 £853
2.2 7.3 4.3 83.7 M3JP/KP 90SLC 2 £1,059 £1,126 1.5 10.1 3.3 83.2 M3JP/KP 90SLC 4 £863 £936
3 9.9 5.7 84.6 M3JP/KP 100LA 2 £1,121 £1,197 2.2 14.6 4.4 85.5 M3JP/KP 100LA 4 £940 £1,017
4 13.2 7.5 86 M3JP/KP 112MB 2 £1,393 £1,485 3 19.8 6 86.5 M3JP/KP 100LB 4 £1,224 £1,297
5.5 18.1 10.3 87 M3JP/KP 132SMB 2 £1,619 £1,701 4 26.2 8.4 88.2 M3JP/KP 112MC 4 £1,307 £1,403
7.5 24.6 13.5 89.2 M3JP/KP 132SMD 2 £2,062 £2,130 5.5 36 11.1 89.5 M3JP/KP 132SMB 4 £1,730 £1,826
9.2 31 16.7 86.9 M3JP/KP 132SME 2 £2,505 £2,577 HO 7.5 49 16 89.2 M3JP/KP 132SMD 4 £1,924 £2,028
11 36 19.9 90.1 M3JP/KP 160MLA 2 £2,385 £2,555 9.2 61 18.8 88.4 M3JP/KP 132SME 4 £2,523 £2,595 HO
15 49 26.8 91.2 M3JP/KP 160MLB 2 £2,826 £2,946 11 71 21.2 91.2 M3JP/KP 160MLC 4 £2,400 £2,520
18.5 60 32.4 91.6 M3JP/KP 160MLC 2 £3,215 £3,302 15 98 28 92 M3JP/KP 160MLE 4 £2,976 £3,082
22 72 38.7 91.2 M3JP/KP 160MLD 2 £3,742 £3,863 HO 18.5 120 35.1 91.8 M3JP/KP 160MLF 4 £3,505 £3,607 HO
6 22 72 38.7 91.7 M3JP/KP 180MLA 2 £3,982 £4,117 18.5 120 35.1 91.6 M3JP/KP 180MLA 4 £3,726 £3,879
30 97 52.3 92.5 M3JP/KP 180MLB 2 £4,745 £4,882 HO 22 143 43.2 90.8 M3JP/KP 160MLG 4 £3,927 £4,066 HO
30 97 53 92.8 M3JP/KP 200MLA 2 £5,069 £5,272 22 143 42 92.2 M3JP/KP 180MLB 4 £4,135 £4,287
37 120 64.3 92.8 M3JP/KP 180MLC 2 £6,642 £6,896 HO 30 195 57.8 92.1 M3JP/KP 180MLC 4 £4,847 £4,983 HO
37 120 64.1 93.6 M3JP/KP 200MLC 2 £6,735 £7,039 30 195 55.7 92.5 M3JP/KP 200MLB 4 £5,172 £5,359
45 146 78.8 93.3 M3JP/KP 200MLE 2 £8,585 £8,964 HO 37 240 69.7 93 M3JP/KP 200MLC 4 £5,901 £6,107 HO
45 145 79.4 93.8 M3JP/KP 225SMB 2 £9,112 £9,451 37 239 67.1 93.6 M3JP/KP 225SMB 4 £6,362 £6,600
55 177 96 93.9 M3JP/KP 225SMC 2 £11,254 £11,679 HO 45 291 80.8 93.8 M3JP/KP 225SMC 4 £7,516 £7,770
55 177 94.6 94.3 M3JP/KP 250SMA 2 £11,984 £12,426 55 354 101 94.3 M3JP/KP 225SMD 4 £8,704 £9,128 HO
67 216 120 93.9 M3JP/KP 225SMD 2 £12,730 £13,514 HO 55 355 100 94.3 M3JP/KP 250SMA 4 £9,216 £9,656
75 241 129 93.8 M3JP/KP 250SMB 2 £15,177 £15,704 HO 60 388 110 93.6 M3JP/KP 225SME 4 £9,922 £10,899 HO
75 241 131 94.3 M3JP/KP 280SMA 2 £14,000 £14,416 75 485 134 93.8 M3JP/KP 250SMB 4 £11,373 £11,899 HO
90 290 154 94.4 M3JP/KP 250SMC 2 £16,979 £18,063 HO 75 483 135 94.5 M3JP/KP 280SMA 4 £12,088 £12,647
90 289 154 94.6 M3JP/KP 280SMB 2 £16,231 £16,650 86 556 153 94.9 M3JP/KP 250SMC 4 £13,648 £14,278 HO
110 353 186 95.1 M3JP/KP 280SMC 2 £19,174 £19,524 HO 90 580 161 94.7 M3JP/KP 280SMB 4 £16,657 £17,167
110 352 196 94.9 M3JP/KP 315SMA 2 £21,444 £22,139 110 707 194 95.1 M3JP/KP 280SMC 4 £18,867 £19,376 HO
132 423 228 95.1 M3JP/KP 315SMB 2 £26,497 £27,195 110 706 194 95.1 M3JP/KP 315SMA 4 £19,037 £19,715
160 513 272 95.4 M3JP/KP 315SMC 2 £32,597 £33,297 132 848 232 95.4 M3JP/KP 315SMB 4 £23,283 £23,792
200 641 335 95.7 M3JP/KP 315MLA 2 £36,083 £36,782 160 1027 285 95.3 M3JP/KP 315SMC 4 £25,663 £26,171
250 800 423 95.7 M3JP/KP 355SMA 2 £44,450 £45,671 200 1285 351 95.6 M3JP/KP 315MLA 4 £33,818 £34,326
315 1009 534 95.7 M3JP/KP 355SMB 2 £54,214 £55,258 250 1604 443 95.9 M3JP/KP 355SMA 4 £42,314 £43,503
355 1136 608 95.7 M3JP/KP 355SMC 2 £58,049 £59,267 315 2021 551 95.9 M3JP/KP 355SMB 4 £53,358 £54,547
400 1281 677 96.9 M3JP/KP 355MLA 2 £64,496 £65,717 355 2280 614 95.9 M3JP/KP 355SMC 4 £60,154 £61,343
450 1441 743 97.1 M3JP/KP 355MLB 2 £72,167 £73,388 400 2565 705 96.3 M3JP/KP 355MLA 4 £67,630 £69,161
500 1601 832 96.9 M3JP/KP 355LKA 2 £84,019 £85,240 450 2884 781 96.7 M3JP/KP 355MLB 4 £75,205 £76,575
560 1790 934 97.2 M3JP/KP 400LA 2 £93,956 £95,699 500 3204 865 97 M3JP/KP 355LKA 4 £83,235 £84,606
560 1790 934 97.2 M3JP/KP 400LKA 2 £93,956 £95,699 560 3586 982 96.8 M3JP/KP 400LA 4 £94,791 £96,551
630 2014 1044 97.4 M3JP/KP 400LB 2 £102,844 £104,587 560 3586 982 96.8 M3JP/KP 400LKA 4 £94,791 £96,551
630 2014 1044 97.4 M3JP/KP 400LKB 2 £102,844 £104,587 630 4035 1084 97 M3JP/KP 400LB 4 £106,711 £110,618
710 2270 1175 97.5 M3JP/KP 400LC 2 £115,745 £117,488 630 4035 1084 97 M3JP/KP 400LKB 4 £106,711 £110,618
710 2270 1175 97.5 M3JP/KP 400LKC 2 £115,745 £117,488 710 4547 1235 97.1 M3JP/KP 400LC 4 £110,980 £115,043
710 4547 1235 97.1 M3JP/KP 400LKC 4 £110,980 £115,043
* JP Exd
* KP Exde

HO = High-output design
† Efficiency full load 100%
