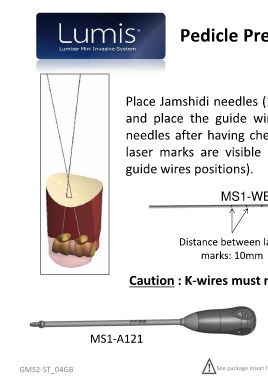

Pedicle Preparation & Screw Insertion

Place Jamshidi needles (11 gauge) according to patient anatomy

and place the guide wires (MS1-WB1450) inside the Jamshidi

needles after having checked they are straight (ensure that the

laser marks are visible after insertion to allow control of the

guide wires positions).

MS1-WB1450

Distance between laser

marks: 10mm

Caution : K-wires must not be reused.

Prepare the entry point with the

cannulated square awl (MS1-A121)
MS1-A121

GMS2-ST_04GB See package insert for labeling limitation 21
