Pedicle Preparation & Screw Insertion

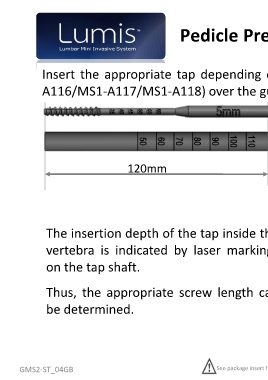

Insert the appropriate tap depending on the pedicle size (MS1-A115/MS1-

A116/MS1-A117/MS1-A118) over the guide wire.

120mm

The insertion depth of the tap inside the

Tap
vertebra is indicated by laser markings
40mm insertion
on the tap shaft. depth

Thus, the appropriate screw length can Protection sleeve

be determined. 90mm insertion

depth
