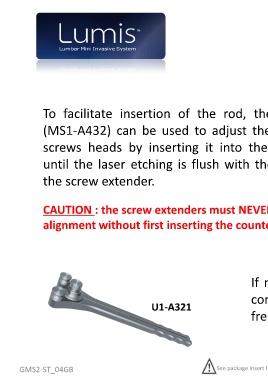

Rod placement

To facilitate insertion of the rod, the counter torque

(MS1-A432) can be used to adjust the positions of the

Laser etching
screws heads by inserting it into the screw extenders

until the laser etching is flush with the superior end of

the screw extender.

CAUTION : the screw extenders must NEVER be used to change the screw MS1-A432

alignment without first inserting the counter-torque.

If needed the rigid part of the rod can be

contoured prior to insertion using the

U1-A321
french bender (U1-A321).

GMS2-ST_04GB See package insert for labeling limitation 32
