Final Tightening




                                                  (percutaneous)

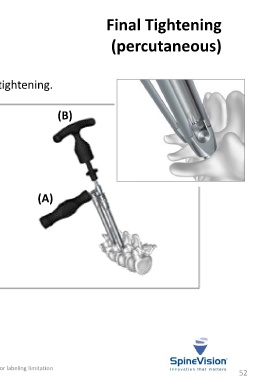

 Pre-assemble the instruments for the final tightening.




 -MS1-A432 + U1-A622 (A)
                          (B)


 -MS1-A411 + MS1-A421 (B)















 Place  the  counter  torque  into  the    (A)


 screw extender and insert the T30



 shaft to tighten the set screw.










 Final  locking  is  achieved  by


 applying a 8.5N.m torque.
