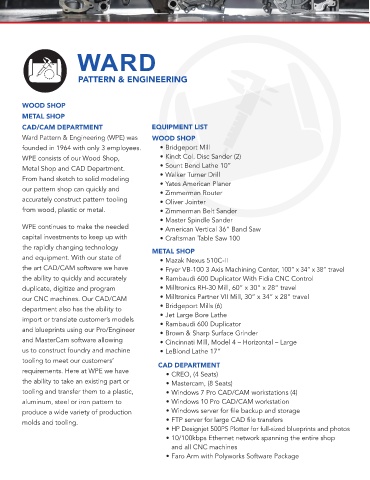

Page 3 - DigitalWard_Brochure
P. 3

Pattern & Engineering
                           PATTERN & ENGINEERING



        WOOD SHOP

        METAL SHOP
                              Aluminum Casting
        CAD/CAM DEPARTMENT                         EQUIPMENT LIST
        Ward Pattern & Engineering (WPE) was       WOOD SHOP
        founded in 1964 with only 3 employees.       • Bridgeport Mill
        WPE consists of our Wood Shop,               • Kindt Col. Disc Sander (2)
        Metal Shop and CAD Department.               • Sount Bend Lathe 10”
        From hand sketch to solid modeling           • Walker Turner Drill
                                                     • Yates American Planer
                              Heat Treating
        our pattern shop can quickly and             • Zimmerman Router
        accurately construct pattern tooling         • Oliver Jointer
        from wood, plastic or metal.                 • Zimmerman Belt Sander
                                                     • Master Spindle Sander
        WPE continues to make the needed             • American Vertical 36” Band Saw
        capital investments to keep up with          • Craftsman Table Saw 100
        the rapidly changing technology            METAL SHOP
                              Production Machine
        and equipment. With our state of             • Mazak Nexus 510C-II
        the art CAD/CAM software we have             • Fryer VB-100 3 Axis Machining Center, 100” x 34” x 38” travel
        the ability to quickly and accurately        • Rambaudi 600 Duplicator With Fidia CNC Control

        duplicate, digitize and program              • Milltronics RH-30 Mill, 60” x 30” x 28” travel
        our CNC machines. Our CAD/CAM                • Milltronics Partner VII Mill, 30” x 34” x 28” travel
        department also has the ability to           • Bridgeport Mills (6)
        import or translate customer’s models        • Jet Large Bore Lathe
                                                     • Rambaudi 600 Duplicator
        and blueprints using our Pro/Engineer        • Brown & Sharp Surface Grinder
        and MasterCam software allowing              • Cincinnati Mill, Model 4 – Horizontal – Large
        us to construct foundry and machine          • LeBlond Lathe 17”

        tooling to meet our customers’
                                                     CAD DEPARTMENT
        requirements. Here at WPE we have              • CREO, (4 Seats)
        the ability to take an existing part or        • Mastercam, (8 Seats)
        tooling and transfer them to a plastic,        • Windows 7 Pro CAD/CAM workstations (4)
        aluminum, steel or iron pattern to             • Windows 10 Pro CAD/CAM workstation
        produce a wide variety of production           • Windows server for file backup and storage
        molds and tooling.                             • FTP server for large CAD file transfers
                                                       • HP Designjet 500PS Plotter for full-sized blueprints and photos
                                                       • 10/100kbps Ethernet network spanning the entire shop
                                                         and all CNC machines
                                                       • Faro Arm with Polyworks Software Package
