Testing & Calibration

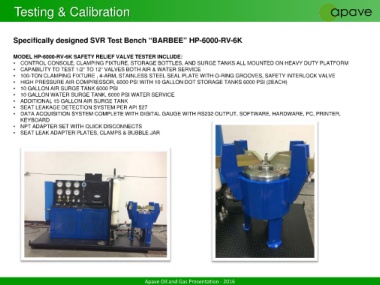

Specifically designed SVR Test Bench “BARBEE” HP-6000-RV-6K

MODEL HP-6000-RV-6K SAFETY RELIEF VALVE TESTER INCLUDE:
• CONTROL CONSOLE, CLAMPING FIXTURE, STORAGE BOTTLES, AND SURGE TANKS ALL MOUNTED ON HEAVY DUTY PLATFORM
• CAPABILITY TO TEST 1/2” TO 12” VALVES BOTH AIR & WATER SERVICE
• 100-TON CLAMPING FIXTURE , 4-ARM, STAINLESS STEEL SEAL PLATE WITH O-RING GROOVES, SAFETY INTERLOCK VALVE
• HIGH PRESSURE AIR COMPRESSOR, 6000 PSI WITH 10 GALLON DOT STORAGE TANKS 6000 PSI (2EACH)
• 10 GALLON AIR SURGE TANK 6000 PSI
• 10 GALLON WATER SURGE TANK, 6000 PSI WATER SERVICE
• ADDITIONAL 15 GALLON AIR SURGE TANK
• SEAT LEAKAGE DETECTION SYSTEM PER API 527
• DATA ACQUISITION SYSTEM COMPLETE WITH DIGITAL GAUGE WITH RS232 OUTPUT, SOFTWARE, HARDWARE, PC, PRINTER,
KEYBOARD
• NPT ADAPTER SET WITH QUICK DISCONNECTS
• SEAT LEAK ADAPTER PLATES, CLAMPS & BUBBLE JAR
