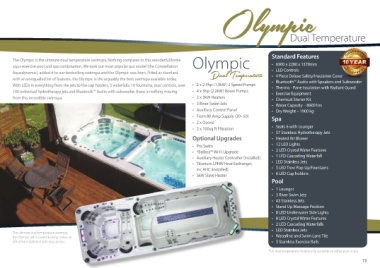

Page 13 - 19143-catalina-swimspas-brochure-2017

Olympic

Dual Temperature

The Olympic is the ultimate dual temperature swimspa. Nothing compares to this wonderful home Olympic Standard Features
aqua exercise pool and spa combination. We took our most popular spa model (the Constellation • 6300 x 2280 x 1370mm
Aquadynamic), added it to our bestselling swimspa and the Olympic was born. Fitted as standard Dual Temperature • LED Controls
with an unequalled list of features, the Olympic is the arguably the best swimspa available today. • 4 Piece Deluxe Safety/Insulation Cover
• Bluetooth™ Audio with Speakers and Subwoofer
With LEDs in everything from the jets to the cup holders, 3 waterfalls, 10 fountains, dual controls, over • 2 x 2.5hp (1.9kW) 2 Speed Pumps • Thermo - Pane Insulation with Radiant Guard
100 individual hydrotherapy jets and Bluetooth™ Audio with subwoofer, there is nothing missing • 4 x 3hp (2.2kW) Boost Pumps • Exercise Equipment
from this incredible swimspa. • 2 x 3kW Heaters • Chemical Starter Kit
• 3 River Swim Jets • Water Capacity – 8900 ltrs
• Auxiliary Control Panel • Dry Weight – 1900 kg
• From 80 Amp Supply (30+50) Spa
• 2 x Ozone
• 2 x 100sq ft Filtration • Seats 6 with Lounger
• 57 Stainless Hydrotherapy Jets
Optional Upgrades • Heated Air Blower

• Pro Swim • 12 LED Lights
• *Balboa™ Wi-Fi Upgrade • 2 LED Crystal Water Features
• Auxiliary Heater Controller (installed) • 1 LED Cascading Waterfall
• Titanium LPHW Heat Exchanger, • LED Stainless Jets
inc AHC (installed) • 3 LED Trevi Pop-Up Fountains
• 3kW Slave Heater • 6 LED Cup holders
Pool

• 1 Lounger
• 3 River Swim Jets
• 43 Stainless Jets
• Stand Up Massage Position
• 8 LED Underwater Side Lights
• 8 LED Crystal Water Features
• 2 LED Cascading Waterfalls
• LED Stainless Jets
The ultimate dual temperature swimspa,
the Olympic set in raised decking makes an • Waterline and Swim Lane Tile
attractive installation with easy access. • 3 Stainless Exercise Rails

*On dual temperature models only available on either pool or spa

13
