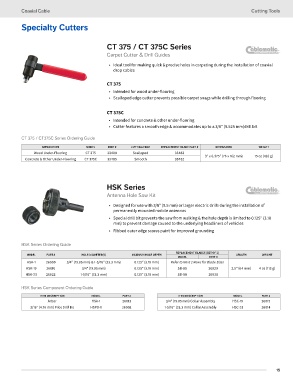

Page 15 - Broadband Catalog 2018

Coaxial Cable Cutting Tools

Specialty Cutters

CT 375 / CT 375C Series

Carpet Cutter & Drill Guides
• Ideal tool for making quick & precise holes in carpeting during the installation of coaxial
drop cables

CT 375
• Intended for wood under-flooring
• Scalloped edge cutter prevents possible carpet snags while drilling through flooring

CT 375C

• Intended for concrete & other under-flooring
• Cutter features a smooth edge & accommodates up to a 3/8″ (9.525 mm)drill bit

CT 375 / CT375C Series Ordering Guide

APPLICATION MODEL PART # CUTTING EDGE REPLACEMENT BLADE PART # DIMENSIONS WEIGHT
Wood Under-Flooring CT 375 33480 Scalloped 33483
3″ x 6.375″ (76 x 162 mm) 15 oz (426 g)
Concrete & Other Under-Flooring CT 375C 33485 Smooth 33482

HSK Series
Antenna Hole Saw Kit

• Designed for use with 3/8″ (9.5 mm) or larger electric drills during the installation of
permanently mounted mobile antennas
• Special drill bit prevents the saw from walking & the hole depth is limited to 0.125″ (3.18
mm) to prevent damage caused to the underlying headliners of vehicles
• Ribbed outer edge scores paint for improved grounding

HSK Series Ordering Guide
REPLACEMENT BLADES (SET OF 2)
MODEL PART # HOLE DIAMETER(S) MAXIMUM HOLE DEPTH LENGTH WEIGHT
MODEL PART #
HSK-1 26000 3/4″ (19.05 mm) & 1-5/16″ (33.3 mm) 0.125″ (3.18 mm) Refer to Next 2 Rows for Blade Sizes
HSK-19 26016 3/4″ (19.05 mm) 0.125″ (3.18 mm) SB-89 26029 2.5″ (64 mm) 4 oz (113 g)
HSK-33 26022 1-5/16″ (33.3 mm) 0.125″ (3.18 mm) SB-88 26030

HSK Series Component Ordering Guide

ITEM DESCRIPTION MODEL PART # ITEM DESCRIPTION MODEL PART #
Arbor HSA-1 26013 3/4″ (19.05 mm) Collar Assembly HSC-19 26015
3/16″ (4.76 mm) Pilot Drill Bit HSPD-1 26002 1-5/16″ (33.3 mm) Collar Assembly HSC-33 26014
