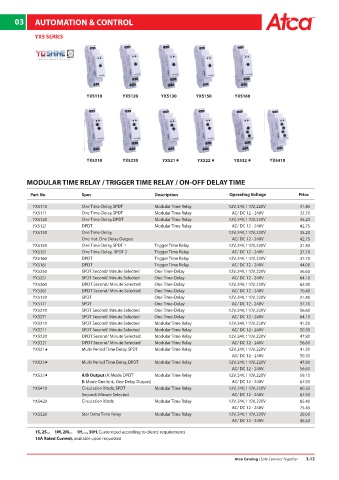

Page 55 - ATCA CATALOG 2019

03 AUTOMATION & CONTROL

YX5 SERIES

YX5110 YX5120 YX5130 YX5150 YX5160

YX5210 YX5220 YX521 YX522 YX532 YX5410

MODULAR TIME RELAY / TRIGGER TIME RELAY / ON-OFF DELAY TIME

Part No Spec Description Operating Voltage Price

YX5110 One Time-Delay, SPDT Modular Time Relay 12V, 24V, 110V, 220V 31.45
YX5111 One Time-Delay, SPDT Modular Time Relay AC/ DC 12 - 240V 37.70
YX5120 One Time-Delay, DPDT Modular Time Relay 12V, 24V, 110V, 220V 35.20
YX5121 DPDT Modular Time Relay AC/ DC 12 - 240V 42.75
YX5130 One Time-Delay, 12V, 24V, 110V, 220V 35.20
One Inst. One Delay Output AC/ DC 12 - 240V 42.75
YX5150 One Time-Delay, SPDT 1 Trigger Time Relay 12V, 24V, 110V, 220V 31.40
YX5151 One Time-Delay, SPDT 2 Trigger Time Relay AC/ DC 12 - 240V 37.70
YX5160 DPDT Trigger Time Relay 12V, 24V, 110V, 220V 37.70
YX5161 DPDT Trigger Time Relay AC/ DC 12 - 240V 44.00
YX5250 SPDT Second/ Minute Selected One Time-Delay 12V, 24V, 110V, 220V 56.60
YX5251 SPDT Second/ Minute Selected One Time-Delay AC/ DC 12 - 240V 64.10
YX5260 DPDT Second/ Minute Selected One Time-Delay 12V, 24V, 110V, 220V 62.90
YX5261 DPDT Second/ Minute Selected One Time-Delay AC/ DC 12 - 240V 70.40
YX5170 SPDT One Time-Delay 12V, 24V, 110V, 220V 31.40
YX5171 SPDT One Time-Delay AC/ DC 12 - 240V 37.70
YX5270 SPDT Second/ Minute Selected One Time-Delay 12V, 24V, 110V, 220V 56.60
YX5271 SPDT Second/ Minute Selected One Time-Delay AC/ DC 12 - 240V 64.10
YX5210 SPDT Second/ Minute Selected Modular Time Relay 12V, 24V, 110V, 220V 41.50
YX5211 SPDT Second/ Minute Selected Modular Time Relay AC/ DC 12 - 240V 50.30
YX5220 DPDT Second/ Minute Selected Modular Time Relay 12V, 24V, 110V, 220V 47.80
YX5221 DPDT Second/ Minute Selected Modular Time Relay AC/ DC 12 - 240V 56.60
YX521 Multi-Period Time Delay, SPDT Modular Time Relay 12V, 24V, 110V, 220V 41.50
AC/ DC 12 - 240V 50.30
YX522 Multi-Period Time Delay, DPDT Modular Time Relay 12V, 24V, 110V, 220V 47.80
AC/ DC 12 - 240V 56.60
YX532 A/B Output (A: Mode DPDT Modular Time Relay 12V, 24V, 110V, 220V 59.10
B: Mode One Isnt., One Delay Output) AC/ DC 12 - 240V 67.90
YX5410 Circulation Mode, SPDT Modular Time Relay 12V, 24V, 110V, 220V 60.35
Second/ Minute Selected AC/ DC 12 - 240V 67.90
YX5420 Circulation Mode Modular Time Relay 12V, 24V, 110V, 220V 65.40
AC/ DC 12 - 240V 75.45
YX5520 Star Delta Time Relay Modular Time Relay 12V, 24V, 110V, 220V 39.00
AC/ DC 12 - 240V 46.50
1S, 2S... 1M, 2M... 1H,..., 30H, Customized according to clients’ requirements
15A Rated Current, available upon requested
