TEMPERATURE

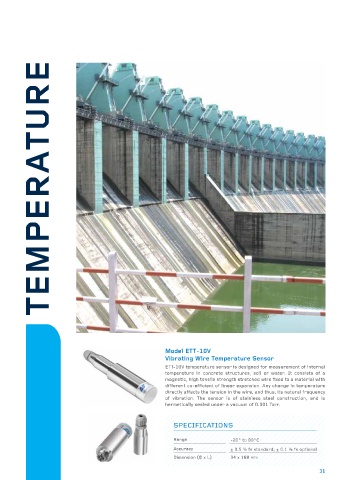

Model ETT-10V
Vibrating Wire Temperature Sensor
ETT-10V temperature sensor is designed for measurement of internal
temperature in concrete structures, soil or water. It consists of a
magnetic, high tensile strength stretched wire fixed to a material with
different co-efficient of linear expansion. Any change in temperature
directly affects the tension in the wire, and thus, its natural frequency
of vibration. The sensor is of stainless steel construction, and is
hermetically sealed under a vacuum of 0.001 Torr.
SPECIFICATIONS
Range -20° to 80°C
Accuracy ± 0.5 % fs standard; ± 0.1 % fs optional
Dimension (Ø x L) 34 x 168 mm
