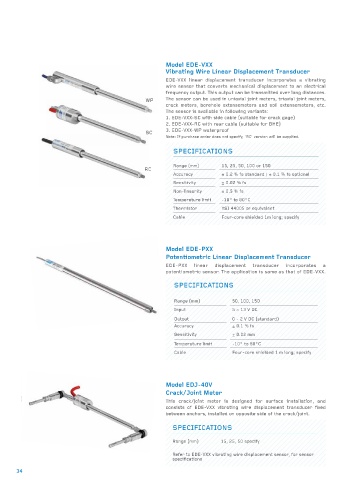

Page 34 - Consolidated Catalog

Model EDE-VXX
Vibrating Wire Linear Displacement Transducer
EDE-VXX linear displacement transducer incorporates a vibrating
wire sensor that converts mechanical displacement to an electrical
frequency output. This output can be transmitted over long distances.
WP The sensor can be used in uniaxial joint meters, triaxial joint meters,
crack meters, borehole extensometers and soil extensometers, etc.
The sensor is available in following variants:
1. EDE-VXX-SC with side cable (suitable for crack gage)
2. EDE-VXX-RC with rear cable (suitable for BHE)
SC 3. EDE-VXX-WP waterproof
Note: If purchase order does not specify, ‘RC’ version will be supplied.
SPECIFICATIONS

Range (mm) 15, 25, 50, 100 or 150
RC
Accuracy ± 0.2 % fs standard | ± 0.1 % fs optional
Sensitivity ± 0.02 % fs
Non-linearity ± 0.5 % fs
Temperature limit -10° to 80°C
Thermistor YSI 44005 or equivalent
Cable Four-core shielded 1m long; specify

Model EDE-PXX
Potentiometric Linear Displacement Transducer
EDE-PXX linear displacement transducer incorporates a
potentiometric sensor. The application is same as that of EDE-VXX.

SPECIFICATIONS

Range (mm) 50, 100, 150
Input 5 ~ 13 V DC
Output 0 - 2 V DC (standard)
Accuracy ± 0.1 % fs
Sensitivity ± 0.02 mm
Temperature limit -10° to 80°C
Cable Four-core shielded 1 m long; specify

Model EDJ-40V
Crack/Joint Meter
This crack/joint meter is designed for surface installation, and
consists of EDE-VXX vibrating wire displacement transducer fixed
between anchors, installed on opposite side of the crack/joint.

SPECIFICATIONS

Range (mm) 15, 25, 50 specify

Refer to EDE-VXX vibrating wire displacement sensor, for sensor
specifications
