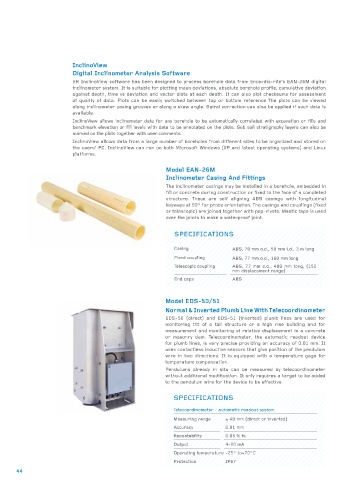

InclinoView
Digital Inclinometer Analysis Software
ER InclinoView software has been designed to process borehole data from Encardio-rite’s EAN-26M digital
inclinometer system. It is suitable for plotting mean deviations, absolute borehole profile, cumulative deviation
against depth, time vs deviation and vector plots at each depth. It can also plot checksums for assessment
of quality of data. Plots can be easily switched between top or bottom reference The plots can be viewed
along inclinometer casing grooves or along a skew angle. Spiral correction can also be applied if such data is
available.
InclinoView allows inclinometer data for any borehole to be automatically correlated with excavation or fills and
benchmark elevation or fill levels with date to be annotated on the plots. Sub soil stratigraphy layers can also be
marked on the plots together with user comments.
InclinoView allows data from a large number of boreholes from different sites to be organized and stored on
the users’ PC. InclinoView can run on both Microsoft Windows (XP and latest operating systems) and Linux
platforms.

Model EAN-26M
Inclinometer Casing And Fittings
The inclinometer casings may be installed in a borehole, embedded in
fill or concrete during construction or fixed to the face of a completed
structure. These are self aligning ABS casings with longitudinal
keyways at 90° for probe orientation. The casings and couplings (fixed
or telescopic) are joined together with pop-rivets. Mastic tape is used
over the joints to make a waterproof joint.

SPECIFICATIONS

Casing ABS, 70 mm o.d., 58 mm i.d., 3 m long
Fixed coupling ABS, 77 mm o.d., 160 mm long
Telescopic coupling ABS, 77 mm o.d., 400 mm long, (150
mm displacement range)
End caps ABS

Model EDS-50/51
Normal & Inverted Plumb Line With Telecoordinometer
EDS-50 (direct) and EDS-51 (inverted) plumb lines are used for
monitoring tilt of a tall structure or a high rise building and for
measurement and monitoring of relative displacement in a concrete
or masonry dam. Telecoordinometer, the automatic readout device
for plumb lines, is very precise providing an accuracy of 0.01 mm. It
uses contactless inductive sensors that give position of the pendulum
wire in two directions. It is equipped with a temperature gage for
temperature compensation.
Pendulums already in situ can be measured by telecoordinometer
without additional modification. It only requires a target to be added
to the pendulum wire for the device to be effective

SPECIFICATIONS

Telecoordinometer - automatic readout system
Measuring range ± 40 mm (direct or inverted)
Accuracy 0.01 mm
Repeatability 0.05 % fs
Output 4-20 mA
Operating temperature -25° to+70°C
Protection IP67
