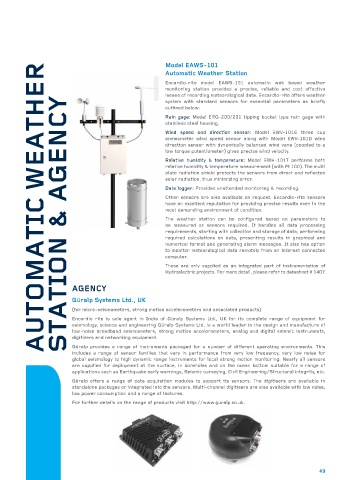

Page 49 - Consolidated Catalog

AUTOMATIC WEATHER
Model EAWS-101
Automatic Weather Station

Encardio-rite model EAWS-101 automatic web based weather
monitoring station provides a precise, reliable and cost effective
means of recording meteorological data. Encardio-rite offers weather
STATION & AGENCY
system with standard sensors for essential parameters as briefly
outlined below:
Rain gage: Model ERG-200/201 tipping bucket type rain gage with
stainless steel housing.
Wind speed and direction sensor: Model EWV-101S three cup
anemometer wind speed sensor along with Model EWV-101D wind
direction sensor with dynamically balanced wind vane (coupled to a
low torque potentiometer) gives precise wind velocity.
Relative humidity & temperature: Model EWH-101T performs both
relative humidity & temperature measurement (with Pt 100). The multi
plate radiation shield protects the sensors from direct and reflected
solar radiation, thus minimizing error.
Data logger: Provides unattended monitoring & recording.
Other sensors are also available on request. Encardio-rite sensors
have an excellent reputation for providing precise results even in the
most demanding environment of condition.
The weather station can be configured based on parameters to
be measured or sensors required. It handles all data processing
requirements, starting with collection and storage of data, performing
required calculations on data, presenting results in graphical and
numerical format and generating alarm messages. It also has option
to monitor meteorological data remotely from an internet connected
computer.
These are only supplied as an integrated part of instrumentation of
Hydroelectric projects. For more detail, please refer to datasheet # 1407.

AGENCY

Güralp Systems Ltd., UK
(for micro-seismometers, strong motion accelerometers and associated products)
Encardio rite is sole agent in India of Güralp Systems Ltd., UK for its complete range of equipment for
seismology, science and engineering Güralp Systems Ltd. is a world leader in the design and manufacture of
low-noise broadband seismometers, strong motion accelerometers, analog and digital seismic instruments,
digitizers and networking equipment.
Güralp provides a range of instruments packaged for a number of different operating environments. This
includes a range of sensor families that vary in performance from very low frequency, very low noise for
global seismology to high dynamic range instruments for local strong motion monitoring. Nearly all sensors
are supplied for deployment at the surface, in boreholes and on the ocean bottom suitable for a range of
applications such as Earthquake early warnings, Seismic surveying, Civil Engineering/Structural integrity, etc.
Güralp offers a range of data acquisition modules to support its sensors. The digitisers are available in
standalone packages or integrated into the sensors. Multi-channel digitisers are also available with low noise,
low power consumption and a range of features.
For further details on the range of products visit http://www.guralp.co.uk.

49
