3-27

NO. Engine will not crank. See 1.2 STARTING SYSTEM DIAGNOSIS. NO No DTCs displayed. For a list of symptoms that may not set diagnostic trouble codes, refer to Table 3-10. NO Locate and repair open between terminal 7 and ground. 2006 Softail: TSM & TSSM

2 NO Check for continuity to ground at Breakout Box cavity 7 (black). Wiggle harness during continuity check. Continuity present? NO Locate and repair open between terminal 5 and battery fuse.

Cranks, but will not start. For carbureted models, see 4.9 ENGINE CRANKS, BUT WILL NOT START. For EFI models, see 5.10 ENGINE CRANKS, BUT WILL NOT START.
NO. NO Unable to enter diagnostic mode. With ignition switch OFF, press and release odometer reset switch. Does odometer display appear with display backlighting? YES Check for battery voltage at Breakout Box terminal 5 (black) of speedometer while wiggling harness. Battery volt- age continuously present? NO Replace speedometer reset switch.

Does engine start? 1 YES With ignition switch OFF and speedometer connector [39] disconnected, check continuity between Breakout Box cavities 8 and 11 Is continuity present when speedometer reset switch is depressed and infinity when released?

Starts, then stalls. For EFI models, see 5.12
YES. For carbureted models, see 4.10 STARTS, THEN STALLS. STARTS, THEN STALLS. YES STOP Go to Initial Diag- nostic Check (Part 2 of 3). YES Replace speedometer.

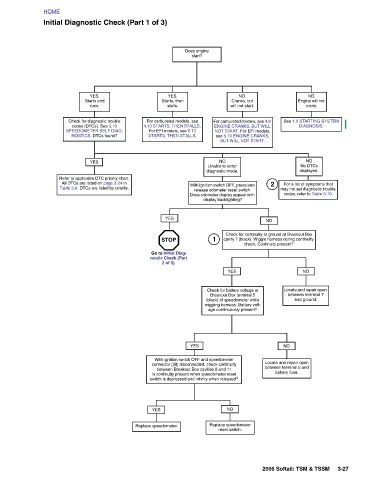

Initial Diagnostic Check (Part 1 of 3)

Check for diagnostic trouble Refer to applicable DTC priority chart. All DTCs are listed on page 3-24 in Table 3-9. DTCs are listed by priority.

Starts and codes (DTCs). See 3.10
YES. runs. SPEEDOMETER SELF DIAG- NOSTICS. DTCs found? YES
