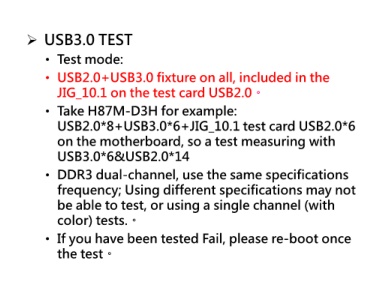

 USB3.0 TEST

• Test mode:

• USB2.0+USB3.0 fixture on all, included in the

JIG_10.1 on the test card USB2.0。

• Take H87M-D3H for example:

USB2.0*8+USB3.0*6+JIG_10.1 test card USB2.0*6

on the motherboard, so a test measuring with

USB3.0*6&USB2.0*14

• DDR3 dual-channel, use the same specifications

frequency; Using different specifications may not

be able to test, or using a single channel (with

color) tests.。

• If you have been tested Fail, please re-boot once

the test。
