Page 6 - 8 Series testing notes
P. 6

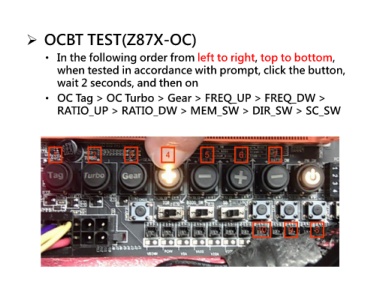

  OCBT TEST(Z87X-OC)



                  • In the following order from left to right, top to bottom,

                       when tested in accordance with prompt, click the button,

                       wait 2 seconds, and then on

                  • OC Tag > OC Turbo > Gear > FREQ_UP > FREQ_DW >

                       RATIO_UP > RATIO_DW > MEM_SW > DIR_SW > SC_SW
   1   2   3   4   5   6   7   8
