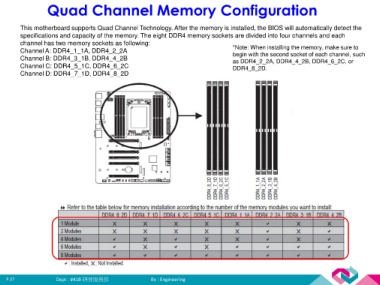

Quad Channel Memory Configuration

This motherboard supports Quad Channel Technology. After the memory is installed, the BIOS will automatically detect the
specifications and capacity of the memory. The eight DDR4 memory sockets are divided into four channels and each
channel has two memory sockets as following: *Note: When installing the memory, make sure to
Channel A: DDR4_1_1A, DDR4_2_2A begin with the second socket of each channel, such
Channel B: DDR4_3_1B, DDR4_4_2B as DDR4_2_2A, DDR4_4_2B, DDR4_6_2C, or
Channel C: DDR4_5_1C, DDR4_6_2C DDR4_8_2D.
Channel D: DDR4_7_1D, DDR4_8_2D
